For Timber Flaps with Plastic Housing

Precision-engineered hinges that bring effortless control and enduring quality to your timber flap doors.

Crafted with a sturdy steel body and a sleek plastic housing, this adjustable timber flap hinge offers both durability and refined functionality. Designed for flap doors with an opening angle ranging from 80º to 100º, it supports smooth, controlled movement with the convenience of an adjustable braking effect. Whether for kitchen cabinets, storage compartments, or display units, owning these hinges means embracing ease and precision in every lift and close.

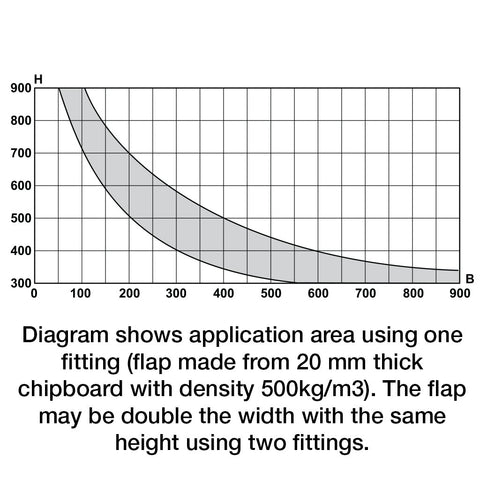

The nickel-plated finish and black plastic housing blend seamlessly into modern interiors, providing both protection and style. Installation is effortless thanks to the plug-in quick-fix system for secure attachment to the angular bracket, compatible with both left and right-hand use. Supplied with all necessary screws and instructions, this hinge is engineered for long-lasting performance and versatile applications on timber flaps between 300 mm and 500 mm in height.

Features

Adjustable opening angle between 80º and 100º for versatile flap movement
Durable steel construction with nickel-plated finish and black plastic housing
Plug-in, quick-fix system for secure, tool-free installation on angular brackets
Suitable for left and right-hand use with included fixing screws and instructions
Braking effect adjustable by screw to tailor flap closing speed

Specifications

Material: Steel, plastic housing
Finish: Nickel-plated with black housing
Opening Angle: 80º - 100º
Adjustment: Braking effect adjustable by screw (unscrew to increase, tighten to decrease)
Installation: Screw fixing to angular bracket
Supplied with: Fixing screws and installation instructions

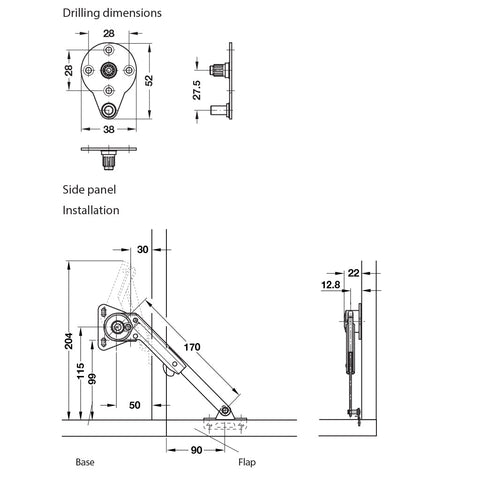

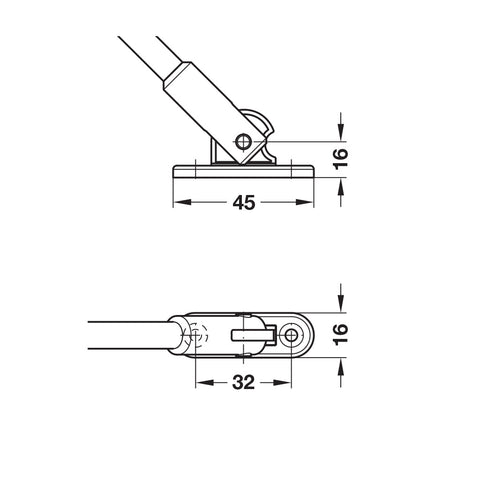

Dimensions:

Downloads

Installation Instructions
