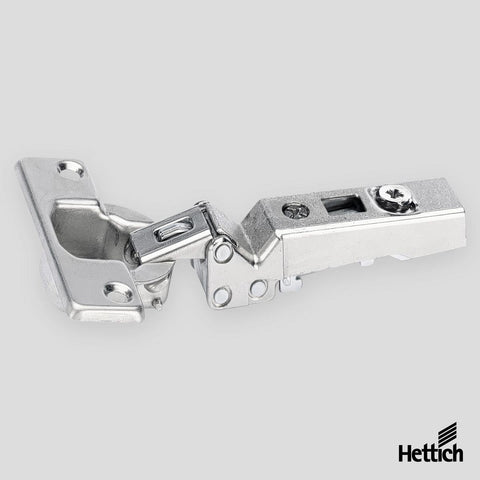

Intermat W-45 Angled Hinge — Press-In

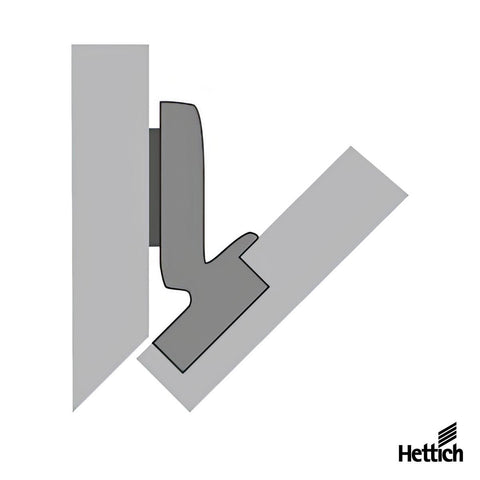

A specialised concealed hinge engineered for cabinet doors requiring a precise -45° angular offset.
Constructed from steel and die-cast zinc with a nickel-plated finish, the Intermat W-45 delivers the structural rigidity and corrosion resistance expected in demanding joinery environments. The press-in installation method — using pre-mounted expanding dowels — eliminates the need for screws at the cup, reducing installation time without compromising holding strength. Built for angled returns, corner solutions, and non-standard door alignments where a standard hinge cannot perform.
Product Details
- Material: Steel and die-cast zinc, nickel plated
- Opening angle: 125°
- Door thickness: 15–28 mm
- Door mounting: Overlay
- Drilling pattern (TH): 52 × 5.5 mm
- Cup depth: 12.7 mm
- Integrated overlay adjustment: ±2 mm
- Integrated depth adjustment: ±2 mm
- Installation: Press-in with expanding dowels
- Quality classification: EN 15570, Level 2
Best For
Designed for cabinetry with angled door configurations — particularly corner units, angled returns, and joinery where doors meet at non-standard angles. The self-closing mechanism and integrated adjustments make it a practical choice for installers working to tight tolerances on bespoke or architectural joinery projects.
