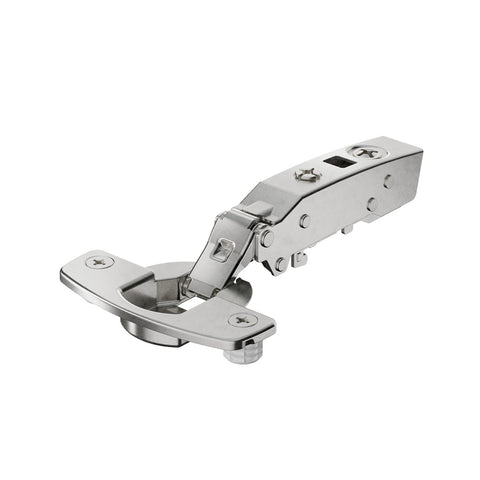

Sensys 8646i Hinge 110° | Thin Door 10–19 mm, Full Overlay, Press-In
A concealed hinge engineered for thin cabinet doors from 10–19 mm, delivering controlled soft-close motion without compromising structural integrity.
The Sensys 8646i opens up contemporary cabinetry designs using slimmer door panels — a specification that standard hinges cannot accommodate. Its integrated Silent System produces a whisper-quiet, self-closing action that feels deliberate rather than mechanical. With a cup depth of just 7.8 mm and a 110° opening angle, it suits tight frameless layouts where clearance is critical. Certified to EN 15570 Level 3, it is a hinge specified by cabinetmakers who require long-cycle reliability.
Product Details
- Material: Nickel-plated steel — corrosion-resistant, built for high-cycle use
- Finish: Nickel plate
- Door thickness: 10–19 mm
- Cup depth: 7.8 mm
- Opening angle: 110°
- Overlay: Full overlay; 3D adjustment — overlay ±2 mm, depth +3/−2 mm, height via mounting plate
- Mounting: Press-in, TH 53 drilling pattern
- Certification: EN 15570 Level 3
Best For
Frameless European-style cabinetry with full overlay doors in painted MDF, veneer, or lacquered finishes where door thickness is reduced for a flush, minimal aesthetic. Well-suited to handleless kitchen and bathroom designs where standard hinge cup depths are incompatible with the door panel. Pairs with Hettich Sensys mounting plates for a complete, calibrated installation.
