Ironfix Drawer-Mounted Ironing Board
A collapsible ironing board that folds out of a drawer front, ready to use in one movement.
The Häfele Ironfix fits behind a drawer front inside a laundry or wardrobe cabinet. As the drawer opens, the board pulls out and unfolds automatically; it folds away just as quickly with a light push on the stop lug. The width adjusts to suit cabinets from 362 to 500 mm inside, and the board can be set level with your benchtop.
Product Details
- Brand: Häfele (Ironfix)
- Model / part no.: 568.60.710
- Board size (L × W): 950 × 300 mm
- Internal carcase width: 362–500 mm, continuously adjustable
- Fits: the drawer space of most standard base cabinets
- Cabinet face frame: 19 mm maximum
- Material: steel fittings, cotton ironing board cover
- Finish: fittings powder-coated white (RAL 9016); white and grey striped cover
- Cover: cotton with foam lining and elastic gathering, steam permeable, suits all irons
- Mounting: screw-fixed to the cabinet sides, centred in the cabinet opening
- Rail fixing holes: two per side, 32 mm apart, the first 37 mm from the cabinet front and the second 416 mm behind it
Setting it level with the benchtop
| Benchtop thickness (D) | Top of rail below benchtop (E) | Drawer front fixing (F) |
|---|---|---|
| 20 mm | 86 mm | 102 mm |
| 30 mm | 76 mm | 92 mm |
| 40 mm | 66 mm | 82 mm |
| 50 mm | 66 mm | 82 mm |

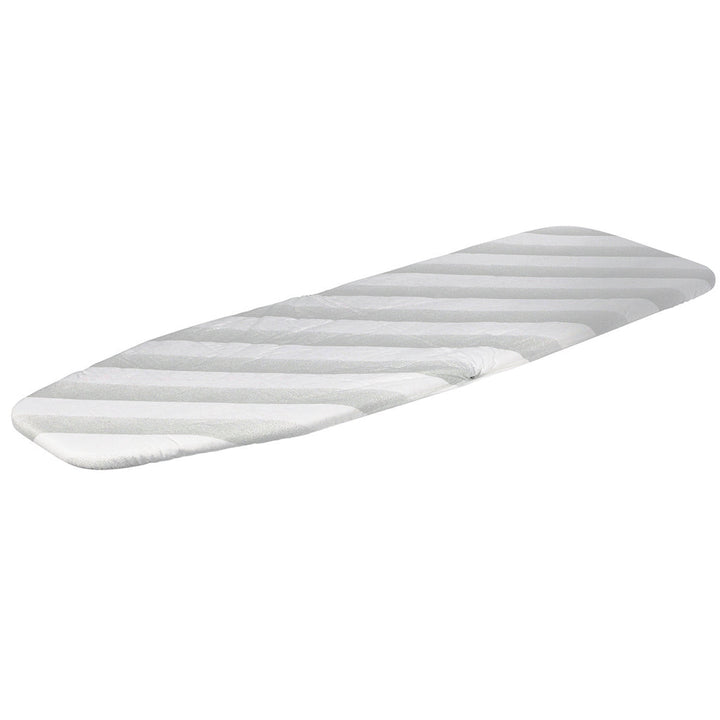

Full measurements are in the installation instructions below. The cover is fitted over the board after installation; a replacement cover is available separately.
Best For
Laundries and dressing areas where a permanent ironing board would take up space. Concealed in a drawer, it is ready to use in one movement and folds away just as quickly.
We recommend this is fitted by a qualified cabinet maker or installer.
You may also need
Customers asked these questions about Ironfix Drawer-Mounted Ironing Board
Answers from experts.Pull Out Boards For Tight Cabinets
My cabinet space is tight. How do I know this will definitely fit?
This unit is engineered for flexibility, fitting into cabinet internal widths between 362mm and 500mm. The critical measurement is your clear internal width-the space between the drawer slides or cabinet walls. As long as your cabinet depth is at least 500mm (standard for most Australian kitchens and laundries), the adjustable rails will secure the unit perfectly. It is designed to be forgiving during installation.
DIY Pull Out Ironing Board Installation
Do I need a professional cabinet maker to install this?
While a tradesperson will make short work of it, the system is designed for competent DIY installation. The unit comes pre-assembled with the running gear; your main task is securing the cabinet rails and attaching your drawer front. If you are comfortable using a drill and a measuring tape to align the height accurately (so it sits flush with your benchtop), you can install this yourself in under an hour.
Pull Out Ironing Board Stability
I'm worried a pull-out board will be wobbly. How stable is it?
This is a common concern with cheaper generic brands, but the Ironfix is built with Hafele's German-engineered steel fittings. Once the drawer is fully extended, the mechanism locks into a rigid position. It is designed to withstand the downward pressure of standard ironing usage without the frustrating "bounce" or flex found in budget alternatives.
Are Pull Out Ironing Boards Practical
Will I actually use this, or will it just become another gadget?
The biggest barrier to ironing is the setup-dragging a heavy board out of a cupboard and setting up legs. By removing that friction, this unit changes your habits. Because it deploys automatically when you pull the drawer, ironing becomes a 30-second task rather than a 10-minute chore. Most owners find they use it daily simply because it is there and ready.
Maintaining Pull Out Mechanisms
Does the mechanism require maintenance or oiling over time?
The runners are permanently lubricated and designed for a maintenance-free lifespan. The powder-coated steel finish is resistant to corrosion and easy to wipe down. Aside from occasionally washing or replacing the cotton cover, the unit is a "fit and forget" appliance designed to outlast the cabinetry it is installed in.
