Hafele Loox Sensor Motion detector, modular.

Seamless and intelligent, this modular motion sensor brings effortless automation to your Loox lighting system.

Designed with precision and discretion, the Häfele Loox Modular Motion Sensor offers automatic on/off lighting control, enhancing both functionality and ambience across wardrobes, cabinets, and interior joinery. With its sleek, compact form and wide sensor coverage, it detects movement up to 3000mm away and activates lighting instantly—eliminating the need for switches while creating a premium, hands-free experience.

This sensor features a 120° detection angle and is equipped with a built-in DIP switch that allows you to easily adjust the delay time to 30, 60, or 180 seconds. Crafted from durable plastic in black, it comes with interchangeable front covers in black, white, and grey, allowing it to blend subtly with surrounding cabinetry. Engineered for use with Häfele's Loox modular lighting systems, it fits neatly into a 12mm drill hole for minimal visual impact.

Ideal for luxury wardrobes, under-cabinet lighting, or any space requiring seamless activation, this motion detector delivers quiet innovation in a beautifully minimal design.

Features

Modular motion sensor for automatic Loox lighting control
Wide 120° sensor angle with 0–3000mm detection range
Adjustable delay timer (30, 60, 180 seconds) via built-in DIP switch
Low power consumption (<0.1 W)

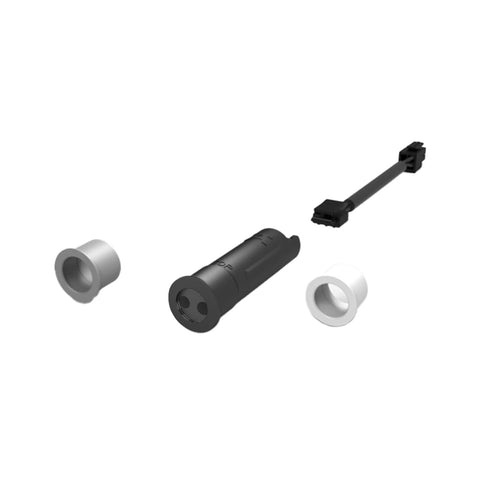

Includes black sensor body and interchangeable black, white, and grey front covers

Specifications & Downloads

Material: Plastic
Finish: Black (with white, black, grey modular front covers included)

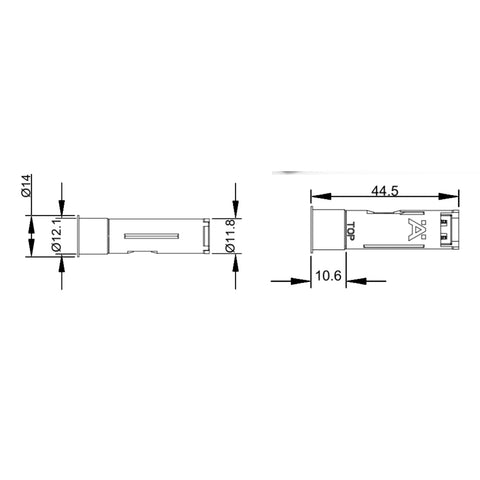

Drill hole Ø: 12mm
Degree of protection: IP20 (indoor use only)
Sensor range: 0–3000 mm
Sensor angle: 120°
Power consumption: <0.1 W
Delay time: 30 / 60 / 180 seconds (adjustable via DIP switch)
Supplied with:
– 1 x motion detector
– 1 x 2-metre lead
Care Instructions: Wipe clean with a soft, dry cloth
