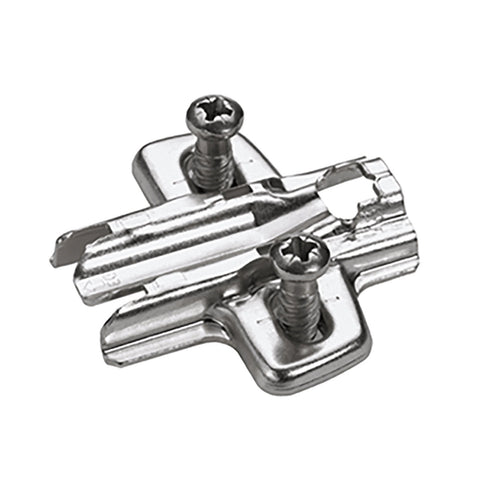

Cross Mounting Plate — Nickel Plated | Hole Line 37 × 32 mm
A precision-engineered cross mounting plate designed for height-adjustable concealed hinge installation in modular cabinetry.
Constructed from steel with a nickel-plated finish, this mounting plate offers a clean, corrosion-resistant surface suited to demanding cabinet environments. The oblong hole height adjustment mechanism allows fine-tuning of ±3 mm, accommodating minor misalignments without door removal. Compatible with Sensys, Novisys, and Intermat hinge systems, it integrates seamlessly into professional cabinetry builds where precision alignment is non-negotiable.
Product Details
- Material: Steel
- Finish: Nickel plated

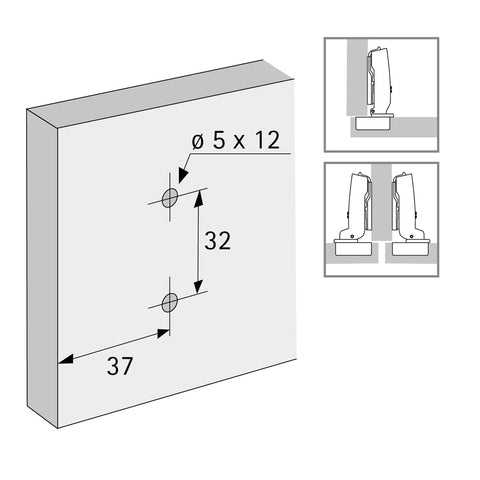

- Hole line: 37 × 32 mm (LR 37 / LA 32)
- Height adjustment: Oblong hole, ±3 mm range
- Distance: 8 mm

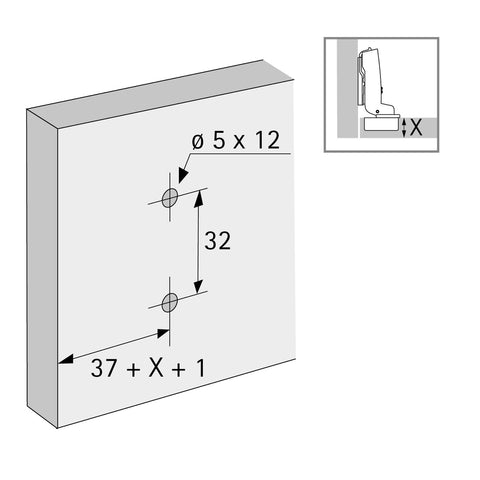

- Installation: Euro screws (ø 5 × 12 mm drilling required)
- Door mounting: Overlay, half overlay, inset
- Cabinet body panel thickness: 15 mm
- Pack quantity: 50 ea.
Best For
Suited to kitchen, bathroom, and joinery cabinet installations requiring precise door alignment with Sensys, Novisys, or Intermat concealed hinges. Ideal for professional cabinet makers and installers working to EN 15570 Level 3 quality standards. Resolves height misalignment issues without full door rehang.
