Aluminium Ventilation Grill, Straight Edged | Various Sizes

A tailored ventilation solution in architectural-grade aluminium, designed for seamless integration across large or small surfaces.

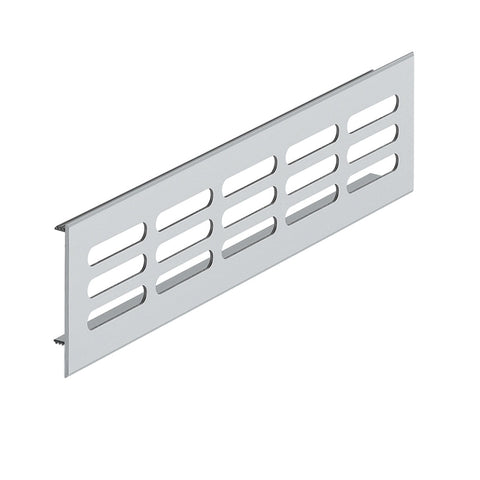

Crafted for projects where precision meets scale, this Aluminium Ventilation Grill features straight bevelled edges and a continuous recessed flange for a flawless built-in appearance. Designed for recess mounting, the grill is constructed from high-quality aluminium with ribbed flanges, offering durability and a lightweight profile. The silver anodised E6/EV1 finish lends a refined, modern character that fits effortlessly within contemporary interiors and commercial applications alike.

Available in three widths — 60 mm, 80 mm, and 100 mm — and customisable lengths from 250 mm up to 3000 mm, this range offers unmatched flexibility. With elongated 40 x 7.5 mm apertures for maximum airflow efficiency, each grill size is carefully engineered to deliver effective ventilation for cabinetry, doors, and wall panels. Whether you're fitting out a compact utility cabinet or spanning full-length panels in commercial spaces, this ventilation grill provides a seamless, architecturally considered solution.

Features

Bevelled visible edges for a crisp, clean aesthetic
Continuous flange design for smooth recess mounting
Silver anodised E6/EV1 aluminium finish for durability and visual consistency
Available in widths of 60 mm, 80 mm, and 100 mm
Customisable lengths from 250 mm up to 3000 mm
Large-format ventilation apertures: 40 x 7.5 mm
Precision ribbed flanges for secure, flush installation

Specifications

Material: Aluminium
Finish: Silver coloured anodised E6/EV1
Installation: Recess mounting with continuous flange
Aperture Size: 40 x 7.5 mm
Version: Bevelled visible edges with ribbed flanges

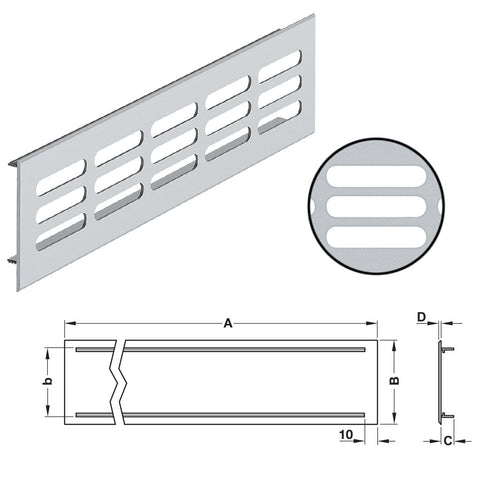

Width 60 mm:
B = 60 mm, b = 46 mm, C = 13.5 mm, D = 1.5 mm
Ventilation Areas (cm²):
250 mm – 45
300 mm – 53
400 mm – 71
500 mm – 89
1000 mm – 186
2000 mm – 372

Width 80 mm:
B = 80 mm, b = 65 mm, C = 15 mm, D = 1.5 mm
Ventilation Areas (cm²):
250 mm – 60
300 mm – 71
400 mm – 95
500 mm – 118
1000 mm – 245
2000 mm – 490
3000 mm – 735

Width 100 mm:
B = 100 mm, b = 85 mm, C = 15 mm, D = 1.5 mm
Ventilation Areas (cm²):
250 mm – 89
300 mm – 107
400 mm – 142
500 mm – 178
