Barracuda II Flap fitting in Aluminium with stainless steel effect. Spring type: S. Length: 310mm.

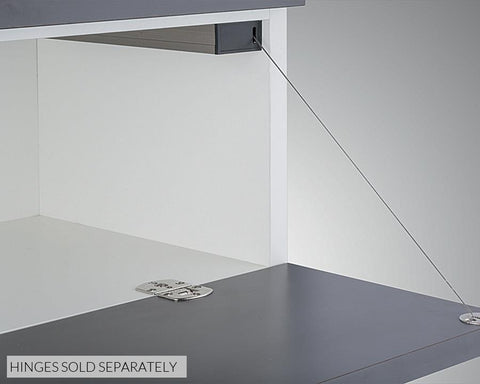

The Barracuda II is a high-performance brake fitting designed to provide controlled movement and durability for modern cabinetry. Featuring a robust stainless-steel traction cable, this fitting is an ideal solution for a variety of cabinetry applications, including wooden flaps and aluminium frames. It is engineered to be mounted discreetly under the top panel, where it secures the flap during operation with a sophisticated soft-braking mechanism for both opening and closing.
Built for versatility, this system is compatible with a wide range of front materials such as chipboard, MDF, solid wood, and aluminium. The integrated stainless steel cable is protected by a wear-resistant plastic sheath, ensuring long-term reliability and smooth operation. With adjustable break force and opening angles, it allows for a customized user experience tailored to the specific weight and height of your cabinetry doors.

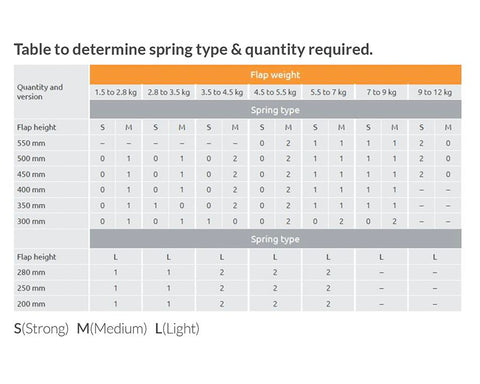

Key Specifications:- Mounting depth: 310mm
- Spring Type: Heavy (S)
- Casting measurement: 46x25mm
- Flap height range: 300mm to 550mm
- Flap weight capacity: 2.8kg to 12kg
- Stainless steel cable with a wear-resistant plastic sheath for enhanced longevity
- Compatible with various push-on fittings for flexible installation
- Fully adjustable break force and opening angle for precision control
- Supports both right-hand and left-hand side assembly configurations
- Ensures smooth, silent closing transitions
- Suitable for diverse front materials including aluminium, chipboard, MDF, and solid wood
