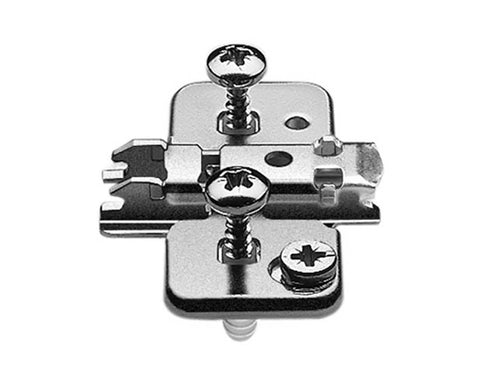

Blum CLIP Mounting Plate, EXPANDO 2 Part
$2.47
Ingenuity and inventive powers create the functionality that is unique to Blum. These hinge systems stand for reliable function, enhanced adjustment, and assembly ease. Featuring an attractive design, these hinges allow for precise 3-dimensional adjustment to ensure a perfect fit for every cabinet door.
Constructed to withstand 200,000 opening and closing cycles, this hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. These mounting plates are also compatible with special solutions such as blind corner and angled applications, providing the versatility required for high-end cabinetry.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for a wide range of cabinetry applications
● 3-dimensional adjustment for precision alignment
● Designed for easy assembly and adjustment
Specifications
● Mounting plate system: CLIP
● Shape of mounting plate: Cruciform
● Upper part material: Steel
● Surface of bottom part: Nickel plated
● Fixing: EXPANDO (pre-mounted screws with split dowel)
● Distance cabinet front edge to first fixing position: 37mm
● Diameter of fixing holes: 5mm
● Drilling depth of fixing holes: 11.5mm
● Mounting plates height adjustment: With cam
● Height adjustment: +/-2mm
● Material of bottom part: Steel
● Item package: 1 piece
Constructed to withstand 200,000 opening and closing cycles, this hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. These mounting plates are also compatible with special solutions such as blind corner and angled applications, providing the versatility required for high-end cabinetry.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for a wide range of cabinetry applications
● 3-dimensional adjustment for precision alignment
● Designed for easy assembly and adjustment
Specifications
● Mounting plate system: CLIP
● Shape of mounting plate: Cruciform
● Upper part material: Steel
● Surface of bottom part: Nickel plated
● Fixing: EXPANDO (pre-mounted screws with split dowel)
● Distance cabinet front edge to first fixing position: 37mm
● Diameter of fixing holes: 5mm
● Drilling depth of fixing holes: 11.5mm
● Mounting plates height adjustment: With cam
● Height adjustment: +/-2mm
● Material of bottom part: Steel
● Item package: 1 piece
