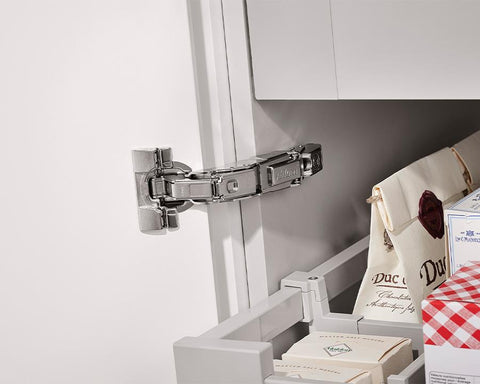

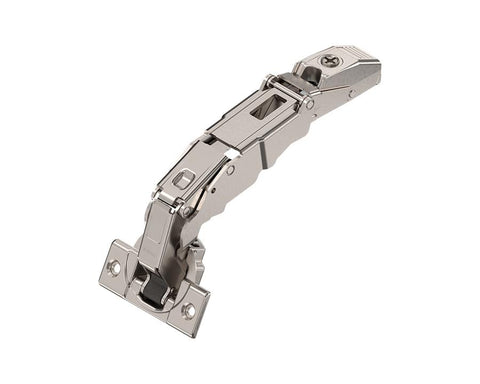

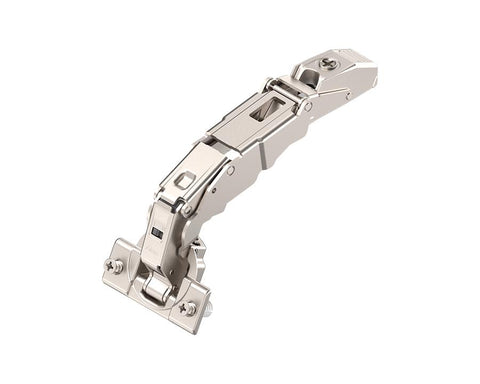

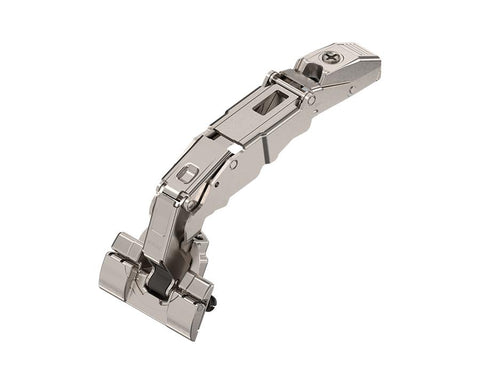

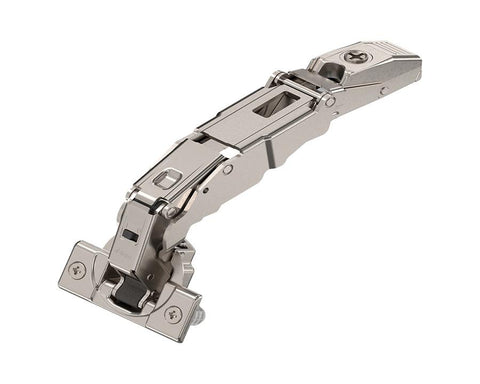

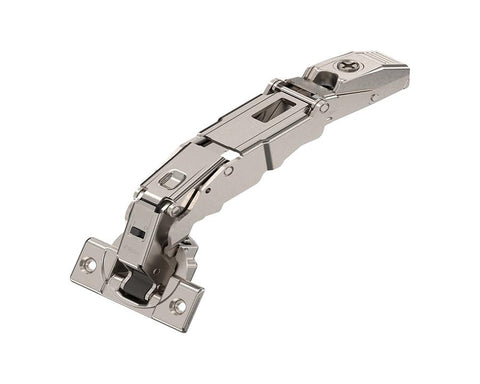

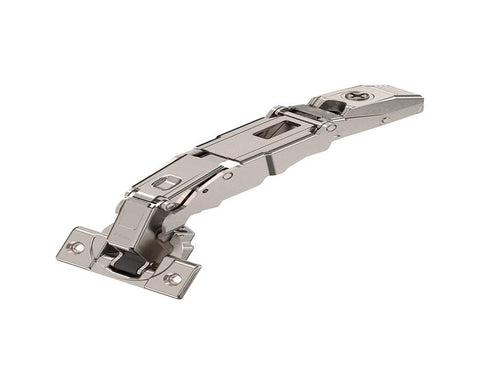

Blum CLIP top 155° 0-protrusion hinge. Overlay Application.
$17.80
Ingenuity and inventive powers create the functionality that is unique to Blum. These 155° wide-angle hinges are engineered for zero-protrusion, making them the ideal solution for cabinets with internal pull-outs or inner drawers. Our hinge systems stand for reliable function, enhanced adjustment, and attractive design, allowing for precise 3-dimensional adjustment to ensure perfect alignment.

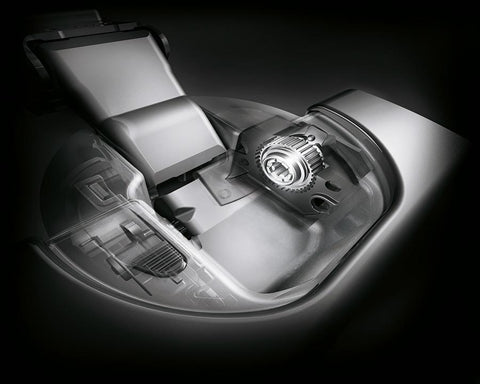

Constructed to withstand 200,000 opening and closing cycles, this range offers versatile solutions for many different applications, including wood, glass, and aluminium frame doors. Depending on your specific cabinet needs, these hinges are available with integrated BLUMOTION for a silent and effortless closing action, or in unsprung versions designed specifically for TIP-ON handle-less applications.
Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy. With various boss assembly options—including INSERTA, EXPANDO, Knock-in, and Screw-on—these hinges provide flexible installation for any professional or DIY project. The wide opening angle provides unhindered access to the cabinet interior, ensuring every door opens and closes with reliable ease.
Features
Specifications
● Application: Wide angle hinge for zero protrusion
● Opening angle: 155°
● Boss material: Steel boss
● Boss finish: Nickel plated
● Arm material: Zinc or Steel
● Diameter hinge boss drilling: 35mm
● Boss drilling depth: 11.7mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 8mm
● Side adjustment: +/- 2 mm
● Depth adjustment: +3/-2mm (convenient spiral screw)
● Gap: 1.5mm
● Item package: 1 piece
● Packaging: Industrial or Commercial packing
Constructed to withstand 200,000 opening and closing cycles, this range offers versatile solutions for many different applications, including wood, glass, and aluminium frame doors. Depending on your specific cabinet needs, these hinges are available with integrated BLUMOTION for a silent and effortless closing action, or in unsprung versions designed specifically for TIP-ON handle-less applications.
Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy. With various boss assembly options—including INSERTA, EXPANDO, Knock-in, and Screw-on—these hinges provide flexible installation for any professional or DIY project. The wide opening angle provides unhindered access to the cabinet interior, ensuring every door opens and closes with reliable ease.
Features
- Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
- Zero-protrusion design suitable for cabinets with internal pull-outs
- Available with integrated BLUMOTION soft-close or unsprung for TIP-ON
- 3-dimensional adjustment for precise door alignment
- Tool-free assembly and adjustment with CLIP technology
Specifications
● Application: Wide angle hinge for zero protrusion
● Opening angle: 155°
● Boss material: Steel boss
● Boss finish: Nickel plated
● Arm material: Zinc or Steel
● Diameter hinge boss drilling: 35mm
● Boss drilling depth: 11.7mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 8mm
● Side adjustment: +/- 2 mm
● Depth adjustment: +3/-2mm (convenient spiral screw)
● Gap: 1.5mm
● Item package: 1 piece
● Packaging: Industrial or Commercial packing
