Blum

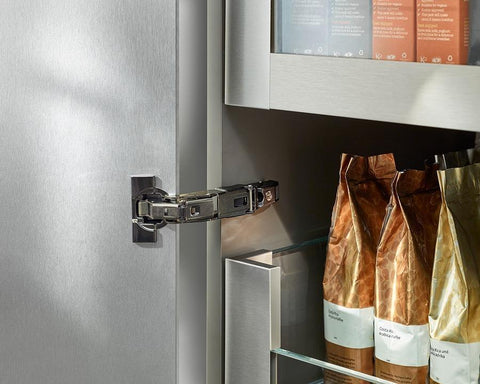

Blum CLIP top 155° 0-protrusion hinge. Overlay Application.
$34.68
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment, assembly ease, and attractive design. These hinges allow for 3-dimensional adjustment and are constructed to withstand 200,000 opening and closing cycles, offering solutions for many different applications such as wood, glass, and aluminium frame doors.
This wide-angle hinge range is specifically designed for zero-protrusion applications, making it the ideal choice for cabinets with internal pull-outs or drawers. Depending on your configuration, these hinges adapt to the dynamics of every door. Options include integrated soft-close technology for a smooth, silent closing action regardless of door weight, or unsprung variants designed specifically for handle-less fronts using motion technology.
Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy. Every door equipped with these hinges opens and closes with reliable ease, while the deactivated feature on specific models ensures doors close at the perfect speed.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications, including thick doors and those with internal pull-outs
● Available with integrated soft-close or unsprung for handle-less motion technology
● 3-dimensional adjustment for precise alignment
● Tool-free assembly and adjustment with CLIP technology
Specifications
● Application: Wide angle hinge for zero protrusion
● Cranking: Overlay application
● Opening angle: 155°
● Closing mechanism: Options for integrated BLUMOTION (with spring) or Unsprung (for TIP-ON)
● Assembly: INSERTA or screw-on options available
● Boss material: Steel boss
● Flange width: 57mm
● Flange length: 22mm
● Flange height: 4.8mm
● Diameter hinge boss drilling: 35mm
● Diameter of fixing holes: 8mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 11.7mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 8mm
● Side adjustment: +/-2mm
● Depth adjustment: +3/-2mm via spiral screw
● Gap: 1.5mm
● Item package: 1 piece
This wide-angle hinge range is specifically designed for zero-protrusion applications, making it the ideal choice for cabinets with internal pull-outs or drawers. Depending on your configuration, these hinges adapt to the dynamics of every door. Options include integrated soft-close technology for a smooth, silent closing action regardless of door weight, or unsprung variants designed specifically for handle-less fronts using motion technology.
Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy. Every door equipped with these hinges opens and closes with reliable ease, while the deactivated feature on specific models ensures doors close at the perfect speed.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications, including thick doors and those with internal pull-outs
● Available with integrated soft-close or unsprung for handle-less motion technology
● 3-dimensional adjustment for precise alignment
● Tool-free assembly and adjustment with CLIP technology
Specifications
● Application: Wide angle hinge for zero protrusion
● Cranking: Overlay application
● Opening angle: 155°
● Closing mechanism: Options for integrated BLUMOTION (with spring) or Unsprung (for TIP-ON)
● Assembly: INSERTA or screw-on options available
● Boss material: Steel boss
● Flange width: 57mm
● Flange length: 22mm
● Flange height: 4.8mm
● Diameter hinge boss drilling: 35mm
● Diameter of fixing holes: 8mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 11.7mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 8mm
● Side adjustment: +/-2mm
● Depth adjustment: +3/-2mm via spiral screw
● Gap: 1.5mm
● Item package: 1 piece
KitchenLibrary is a destination for Blum's high quality hardware components. Speak to our KitchenLibrary assistant using the chat function if you have any questions about this product.
