Blum CLIP top BLUMOTION 110° EXPANDO T Hinge. Full Overlay. 71B453T

Ingenuity and inventive powers create the functionality that is unique to Blum. These hinge systems stand for reliable function, enhanced adjustment, and assembly ease. Designed with an attractive aesthetic, these hinges allow for precise 3-dimensional adjustment to ensure your cabinetry remains perfectly aligned. Constructed to withstand 200,000 opening and closing cycles, this hinge range offers solutions for various applications such as wood, glass, and aluminium frame doors. CLIP top BLUMOTION adapts to the dynamics of every door, ensuring a smooth, silent closing action regardless of size, weight, or the force with which the door is closed. For smaller or lighter doors, the BLUMOTION feature can be deactivated on one or both hinges to maintain the perfect closing speed. The innovative EXPANDO T fixing system is specifically designed for thin fronts ranging from 8 mm to 14 mm in thickness. This system is suitable for a wide variety of materials, enabling exceptional design flexibility. A steel pull-in anchor ensures a secure fit for harder materials, while plastic jaws secure the fit for softer materials. EXPANDO T requires a fixed drilling diameter of 10 mm and a shallow drilling depth of just 6 mm. Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy. Every door equipped with these hinges opens and closes with reliable ease and sophisticated performance.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for thin door applications across various materials
● 3-dimensional adjustment for precise alignment

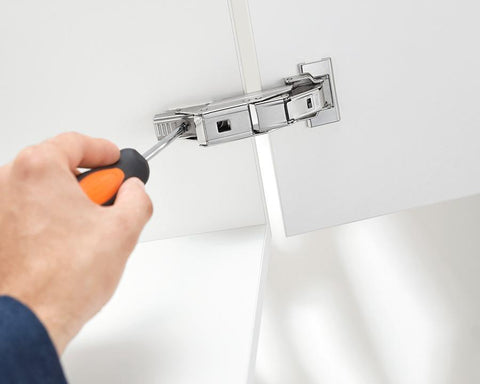

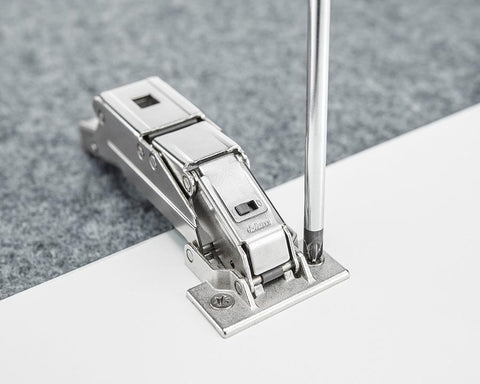

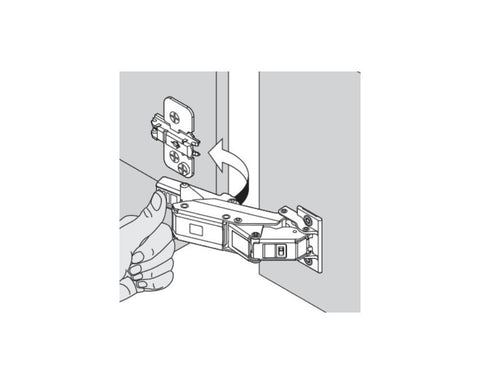

● Easy tool-free assembly and adjustment
Specifications
● Application: Hinge for thin doors
● Opening angle: 110°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION
● Boss Material: Zinc boss
● Boss assembly: EXPANDO T
● Flange width: 44mm
● Flange length: 22mm
● Flange height: 2.2mm
● Diameter of fixing holes: 10mm
● Distance between drillings: 32mm

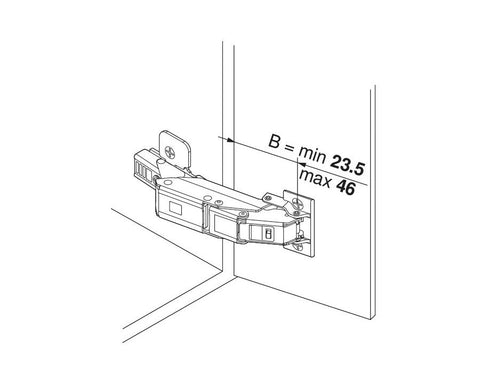

● Minimum drilling distance: 23.5mm
● Maximum drilling distance: 46mm
● Arm material: Steel
● Collision measurement (hinge arm height): 56.5mm
● Type of side adjustment: With screw
● Side adjustment: +/-2mm
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +3/-2mm
● Gap: 1.5mm
● Item package: 1 piece
