Blum

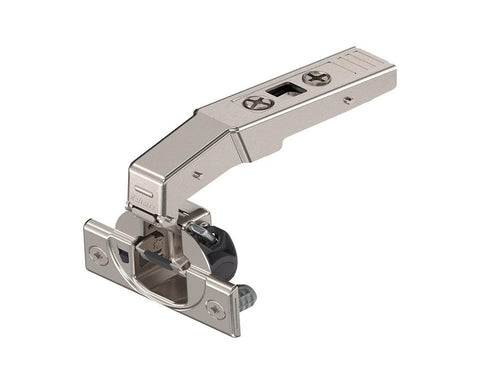

Blum CLIP top BLUMOTION Blind Corner Soft Close Hinge 95
$17.86
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment, assembly ease, and attractive design. These hinges allow for precise 3-dimensional adjustment, ensuring your cabinet doors align perfectly every time.
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.

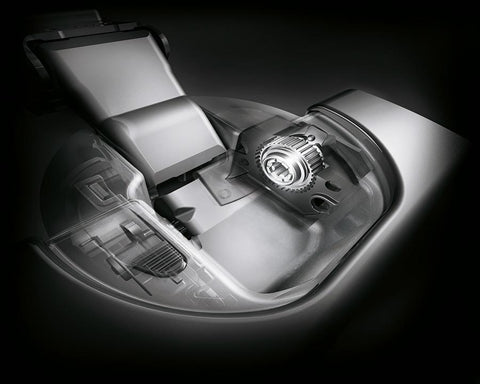

CLIP top BLUMOTION adapts to the dynamics of every door. All doors have a smooth closing action regardless of size, weight, or force with which you close them. The integrated BLUMOTION feature can be deactivated on one or both hinges to ensure even smaller doors close at the right speed. Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for various blind corner and profile door applications
● 3-dimensional adjustment for perfect alignment
● Easy assembly and adjustment with CLIP technology
Specifications
● Application: Blind corner / Profile door hinge
● Opening angle: 95°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION (soft-close)
● Boss material: Steel boss
● Boss finish: Nickel plated
● Diameter hinge boss drilling: 35mm
● Distance between drillings: 45mm
● Boss drilling depth: 13mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 7mm
● Arm material: Steel or Zinc
● Arm finish: Nickel plated
● Type of side adjustment: With screw
● Side adjustment: +/- 2.5mm (standard range)
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +3/-2mm range
● Item package: 1 piece
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
CLIP top BLUMOTION adapts to the dynamics of every door. All doors have a smooth closing action regardless of size, weight, or force with which you close them. The integrated BLUMOTION feature can be deactivated on one or both hinges to ensure even smaller doors close at the right speed. Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for various blind corner and profile door applications
● 3-dimensional adjustment for perfect alignment
● Easy assembly and adjustment with CLIP technology
Specifications
● Application: Blind corner / Profile door hinge
● Opening angle: 95°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION (soft-close)
● Boss material: Steel boss
● Boss finish: Nickel plated
● Diameter hinge boss drilling: 35mm
● Distance between drillings: 45mm
● Boss drilling depth: 13mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 7mm
● Arm material: Steel or Zinc
● Arm finish: Nickel plated
● Type of side adjustment: With screw
● Side adjustment: +/- 2.5mm (standard range)
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +3/-2mm range
● Item package: 1 piece
KitchenLibrary is a destination for Blum's high quality hardware components. Speak to our KitchenLibrary assistant using the chat function if you have any questions about this product.
