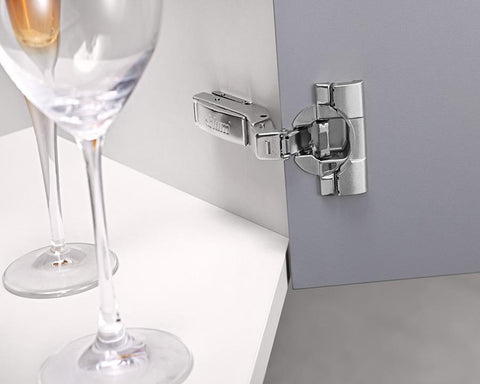

Blum CLIP top BLUMOTION Soft Close Angled Hinge, Full Overlay. Boss:
$15.82
Ingenuity and inventive powers create the functionality that is unique to Blum. These CLIP top BLUMOTION hinge systems represent reliable function, enhanced adjustment, and attractive design. Engineered for excellence, these hinges allow for precise 3-dimensional adjustment to ensure your cabinetry remains perfectly aligned.
Constructed to withstand 200,000 opening and closing cycles, this range offers high-performance solutions for various applications, including wood, glass, and aluminium frame doors. Specifically designed for angled cabinet applications, these hinges adapt to the dynamics of every door. This ensures a smooth, silent closing action regardless of door size, weight, or the force used to close them. For smaller or lighter doors, the integrated BLUMOTION feature can be deactivated to maintain the perfect closing speed.
Blum’s tried and tested CLIP technology makes door-to-cabinet assembly tool-free, quick, and easy. The INSERTA boss assembly further simplifies the process, while the spiral screw provides convenient depth adjustment for a professional finish every time.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for various angled applications
● 3-dimensional adjustment for precise alignment
● Easy tool-free assembly and adjustment with CLIP technology
Specifications
● Application: Angled hinge
● Cranking: Maximum overlay
● Opening angle: 110°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION
● Cover cap type: 90M2603 or 70.1553
● Boss material: Steel boss
● Boss finish: Nickel plated
● Boss assembly: INSERTA
● Flange width: 57mm
● Flange length: 27.5mm
● Flange height: 6.4mm
● Diameter hinge boss drilling: 35mm
● Diameter of fixing holes: 8mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 13mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 7mm
● Arm material: Steel
● Arm finish: Nickel plated
● Type of side adjustment: With screw
● Side adjustment: +/- 2 mm
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +3/- 2 mm
● Gap: 1.5mm
● Item package: 1 piece
● Packaging: Commercial packing
Constructed to withstand 200,000 opening and closing cycles, this range offers high-performance solutions for various applications, including wood, glass, and aluminium frame doors. Specifically designed for angled cabinet applications, these hinges adapt to the dynamics of every door. This ensures a smooth, silent closing action regardless of door size, weight, or the force used to close them. For smaller or lighter doors, the integrated BLUMOTION feature can be deactivated to maintain the perfect closing speed.
Blum’s tried and tested CLIP technology makes door-to-cabinet assembly tool-free, quick, and easy. The INSERTA boss assembly further simplifies the process, while the spiral screw provides convenient depth adjustment for a professional finish every time.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for various angled applications
● 3-dimensional adjustment for precise alignment
● Easy tool-free assembly and adjustment with CLIP technology
Specifications
● Application: Angled hinge
● Cranking: Maximum overlay
● Opening angle: 110°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION
● Cover cap type: 90M2603 or 70.1553
● Boss material: Steel boss
● Boss finish: Nickel plated
● Boss assembly: INSERTA
● Flange width: 57mm
● Flange length: 27.5mm
● Flange height: 6.4mm
● Diameter hinge boss drilling: 35mm
● Diameter of fixing holes: 8mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 13mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 7mm
● Arm material: Steel
● Arm finish: Nickel plated
● Type of side adjustment: With screw
● Side adjustment: +/- 2 mm
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +3/- 2 mm
● Gap: 1.5mm
● Item package: 1 piece
● Packaging: Commercial packing
