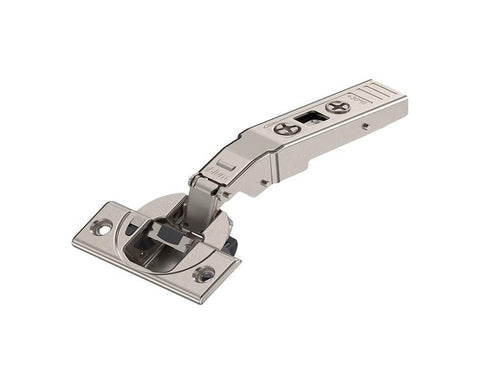

Blum CLIP top BLUMOTION Soft Close Angled Hinge Iii, Full Overlay.
$14.04
Ingenuity and inventive powers create the functionality that is unique to Blum. These hinge systems stand for reliable function, enhanced adjustment, assembly ease, and attractive design. Engineered for precision, these hinges allow for seamless 3-dimensional adjustment to ensure a perfect fit for every cabinet door.
Constructed to withstand 200,000 opening and closing cycles, this hinge range offers durable solutions for various applications such as wood, glass, and aluminium frame doors, as well as thin and thick doors. These hinges are specifically designed for angled applications, providing versatile options for complex cabinetry layouts.
The integrated BLUMOTION technology adapts to the dynamics of every door, ensuring a smooth and silent closing action regardless of size, weight, or the force used to close them. For specialized requirements, the BLUMOTION feature can be deactivated on one or both hinges to ensure doors close at the optimal speed. Utilizing CLIP technology, doors can be snapped on and off tool-free, making assembly and cam adjustments quick and efficient.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for various angled applications
● 3-dimensional adjustment for precision alignment
● Easy tool-free assembly and adjustment
Specifications
● Application: Angled hinge
● Cranking: Maximum overlay
● Opening angle: 95°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION
● Cover cap types: 90M2603, 70.1553, 70T3504 (boss cover cap)
● Boss material: Steel boss
● Boss finish: Nickel plated
● Boss assembly: Screw-on
● Flange dimensions: 57mm (W) x 22mm (L) x 3.2mm (H)
● Diameter hinge boss drilling: 35mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 13mm
● Drilling distance: 3mm to 7mm
● Arm material: Steel
● Arm finish: Nickel plated
● Side adjustment: +/- 2 mm (with screw)
● Depth adjustment: +/- 2 mm (convenient spiral screw)
● Gap: 1.5mm
● Item package: 1 piece
● Packaging: Commercial packing
Constructed to withstand 200,000 opening and closing cycles, this hinge range offers durable solutions for various applications such as wood, glass, and aluminium frame doors, as well as thin and thick doors. These hinges are specifically designed for angled applications, providing versatile options for complex cabinetry layouts.
The integrated BLUMOTION technology adapts to the dynamics of every door, ensuring a smooth and silent closing action regardless of size, weight, or the force used to close them. For specialized requirements, the BLUMOTION feature can be deactivated on one or both hinges to ensure doors close at the optimal speed. Utilizing CLIP technology, doors can be snapped on and off tool-free, making assembly and cam adjustments quick and efficient.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for various angled applications
● 3-dimensional adjustment for precision alignment
● Easy tool-free assembly and adjustment
Specifications
● Application: Angled hinge
● Cranking: Maximum overlay
● Opening angle: 95°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION
● Cover cap types: 90M2603, 70.1553, 70T3504 (boss cover cap)
● Boss material: Steel boss
● Boss finish: Nickel plated
● Boss assembly: Screw-on
● Flange dimensions: 57mm (W) x 22mm (L) x 3.2mm (H)
● Diameter hinge boss drilling: 35mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 13mm
● Drilling distance: 3mm to 7mm
● Arm material: Steel
● Arm finish: Nickel plated
● Side adjustment: +/- 2 mm (with screw)
● Depth adjustment: +/- 2 mm (convenient spiral screw)
● Gap: 1.5mm
● Item package: 1 piece
● Packaging: Commercial packing
