Blum
Blum CLIP top Profile Door Hinge 95 Degree
$10.40
Ingenuity and inventive powers create the functionality that is unique to Blum. These CLIP top profile door hinge systems stand for reliable function, enhanced adjustment, and attractive design. Engineered to provide exceptional stability, these hinges allow for precise 3-dimensional adjustment to ensure perfect alignment for your cabinet doors.
Constructed to withstand 200,000 opening and closing cycles, this range offers versatile solutions for various applications, including wood, glass, and aluminium frame doors. Whether you are working with thin or thick doors, these hinges provide the durability and performance expected from professional-grade hardware. Compatibility with all CLIP mounting plates ensures that fronts can be attached and removed quickly and without tools using the tried and tested CLIP mechanism.
Installation is streamlined through multiple boss assembly options, including INSERTA, Knock-In, and Screw-On methods. Features like the spiral screw for infinitely variable depth adjustment and cam height adjustment on selected mounting plates make the final calibration of your cabinetry effortless and accurate.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for a wide range of profile door applications
● 3-dimensional adjustment for precise alignment

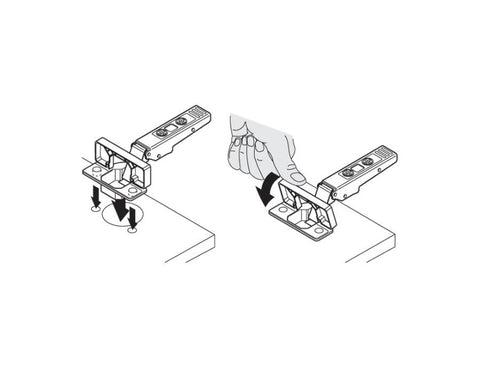

● Tool-free assembly and easy adjustment via the CLIP mechanism
Specifications
● Application: Profile door hinge
● Opening angle: 95°
● Closing mechanism: With spring
● Boss material: Steel boss
● Boss finish: Nickel plated
● Boss assembly options: INSERTA, Knock-In, or Screw-On
● Diameter hinge boss drilling: 35mm
● Boss drilling depth: 12.3mm - 12.6mm
● Drilling distance: 3mm to 7mm
● Side adjustment: +/-2mm
● Depth adjustment: +3/-2mm with spiral screw
● Arm material: Steel or Zinc
● Arm finish: Nickel plated
● Item package: 1 piece
Constructed to withstand 200,000 opening and closing cycles, this range offers versatile solutions for various applications, including wood, glass, and aluminium frame doors. Whether you are working with thin or thick doors, these hinges provide the durability and performance expected from professional-grade hardware. Compatibility with all CLIP mounting plates ensures that fronts can be attached and removed quickly and without tools using the tried and tested CLIP mechanism.
Installation is streamlined through multiple boss assembly options, including INSERTA, Knock-In, and Screw-On methods. Features like the spiral screw for infinitely variable depth adjustment and cam height adjustment on selected mounting plates make the final calibration of your cabinetry effortless and accurate.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for a wide range of profile door applications
● 3-dimensional adjustment for precise alignment
● Tool-free assembly and easy adjustment via the CLIP mechanism
Specifications
● Application: Profile door hinge
● Opening angle: 95°
● Closing mechanism: With spring
● Boss material: Steel boss
● Boss finish: Nickel plated
● Boss assembly options: INSERTA, Knock-In, or Screw-On
● Diameter hinge boss drilling: 35mm
● Boss drilling depth: 12.3mm - 12.6mm
● Drilling distance: 3mm to 7mm
● Side adjustment: +/-2mm
● Depth adjustment: +3/-2mm with spiral screw
● Arm material: Steel or Zinc
● Arm finish: Nickel plated
● Item package: 1 piece
