Blum

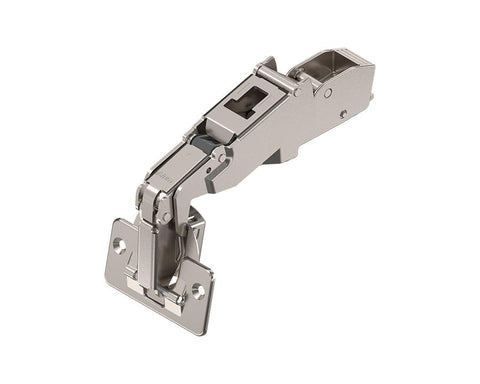

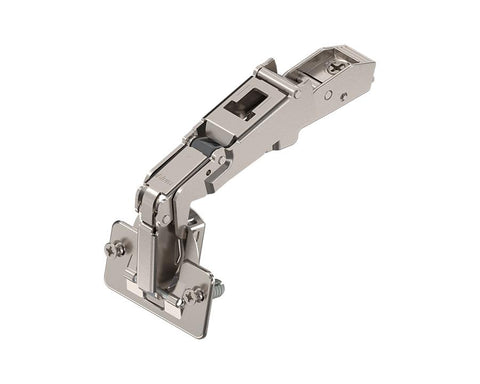

Blum CLIP top Wide Angle Hinge 170°
$15.19
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment, assembly ease, and attractive design. These wide-angle hinges allow for 3-dimensional adjustment, ensuring your cabinet doors align perfectly every time.

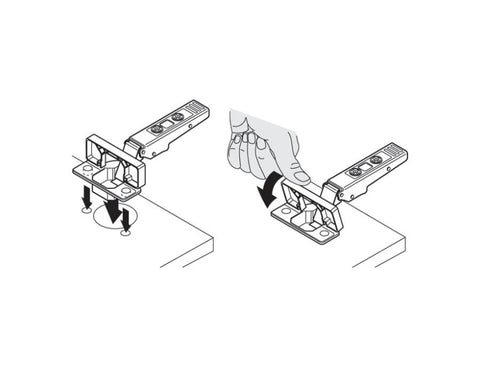

Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy. Whether you are using INSERTA, EXPANDO, Screw-on, or Knock-in boss assembly methods, these hinges are designed to be quickly snapped into place and adjusted with ease.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all wide-angle applications
● 3-dimensional adjustment for precision alignment
● Easy tool-free assembly and adjustment with CLIP mechanism
Specifications
● Application: Wide angle hinge
● Opening angle: 170°
● Closing mechanism: With spring
● Hinge variant: Compatible with BLUMOTION 973A
● Boss material: Steel boss
● Boss finish: Nickel plated
● Arm material: Zinc
● Arm finish: Nickel plated
● Diameter hinge boss drilling: 35mm
● Boss drilling depth: 11mm - 11.2mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 8mm
● Type of side adjustment: With screw (+/- 2mm)
● Type of depth adjustment: Convenient spiral screw (+3/-2mm)
● Gap: 1.5mm
● Item package: 1 piece
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. Blum’s tried and tested CLIP mechanism makes door-to-cabinet assembly tool-free, quick, and easy. Whether you are using INSERTA, EXPANDO, Screw-on, or Knock-in boss assembly methods, these hinges are designed to be quickly snapped into place and adjusted with ease.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all wide-angle applications
● 3-dimensional adjustment for precision alignment
● Easy tool-free assembly and adjustment with CLIP mechanism
Specifications
● Application: Wide angle hinge
● Opening angle: 170°
● Closing mechanism: With spring
● Hinge variant: Compatible with BLUMOTION 973A
● Boss material: Steel boss
● Boss finish: Nickel plated
● Arm material: Zinc
● Arm finish: Nickel plated
● Diameter hinge boss drilling: 35mm
● Boss drilling depth: 11mm - 11.2mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 8mm
● Type of side adjustment: With screw (+/- 2mm)
● Type of depth adjustment: Convenient spiral screw (+3/-2mm)
● Gap: 1.5mm
● Item package: 1 piece
KitchenLibrary is a destination for Blum's high quality hardware components. Speak to our KitchenLibrary assistant using the chat function if you have any questions about this product.
