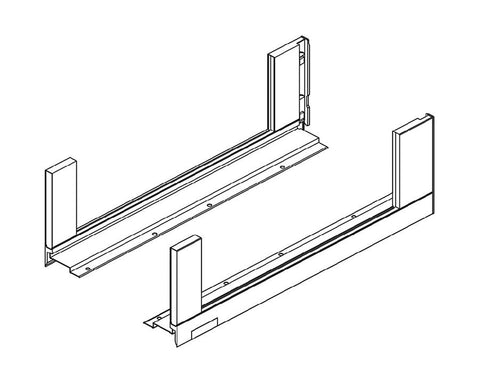

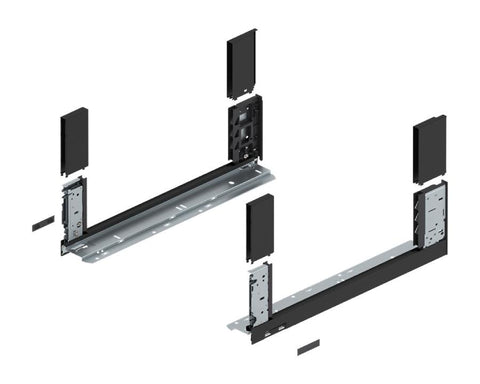

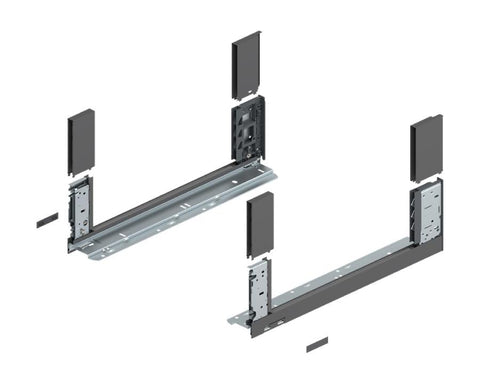

Blum LEGRABOX free drawer side, C height, R&L
$84.00
Straight lines, sleek design, and clearly defined shapes define LEGRABOX—the elegant box system from Blum. Combined with outstanding running characteristics, this system offers a premium look and high quality of motion for any application in the home.
Extending the design options available for pull-outs is LEGRABOX free. Exclusively available for C-height systems, LEGRABOX free supports clever and unique designs in both kitchen and living areas. This allows for large surface area design elements to be integrated harmoniously and effectively into furniture, offering incredible design freedom and a sophisticated aesthetic.
Features
● Modern, slim design
● Made from quality steel
● Coordinates perfectly with all C-height components
● Fascinating technology and enhanced ease of use
● Backed by a lifetime warranty on all Blum products
Specifications
● Type of box: LEGRABOX free drawer side
● Material: Steel
● Drawer side height: C (177mm)
● Design option: Free
● Design: Plain
● Box variant: LEGRABOX free drawer side
● Connection drawer side to frontal: Front fixing bracket
● Connection drawer side to back: Clip on (steel back or wooden back fixing bracket)
● Installation dimension (inner cabinet depth to outer base edge): 17mm
● Fixing base to drawer side: Prong connection or screw-in
● Bottom thickness: 16mm
● Stay-open stop: No
● Additions: ZA7.070 external cover caps, enclosed
● Additions: ZA7.570 inner cover caps, enclosed
● Item package: Right + Left
● Packaging: Commercial packing
● Drawer type: Full extension
● Dynamic load bearing: 40kg
Extending the design options available for pull-outs is LEGRABOX free. Exclusively available for C-height systems, LEGRABOX free supports clever and unique designs in both kitchen and living areas. This allows for large surface area design elements to be integrated harmoniously and effectively into furniture, offering incredible design freedom and a sophisticated aesthetic.
Features
● Modern, slim design
● Made from quality steel
● Coordinates perfectly with all C-height components
● Fascinating technology and enhanced ease of use
● Backed by a lifetime warranty on all Blum products
Specifications
● Type of box: LEGRABOX free drawer side
● Material: Steel
● Drawer side height: C (177mm)
● Design option: Free
● Design: Plain
● Box variant: LEGRABOX free drawer side
● Connection drawer side to frontal: Front fixing bracket
● Connection drawer side to back: Clip on (steel back or wooden back fixing bracket)
● Installation dimension (inner cabinet depth to outer base edge): 17mm
● Fixing base to drawer side: Prong connection or screw-in
● Bottom thickness: 16mm
● Stay-open stop: No
● Additions: ZA7.070 external cover caps, enclosed
● Additions: ZA7.570 inner cover caps, enclosed
● Item package: Right + Left
● Packaging: Commercial packing
● Drawer type: Full extension
● Dynamic load bearing: 40kg
