Blum

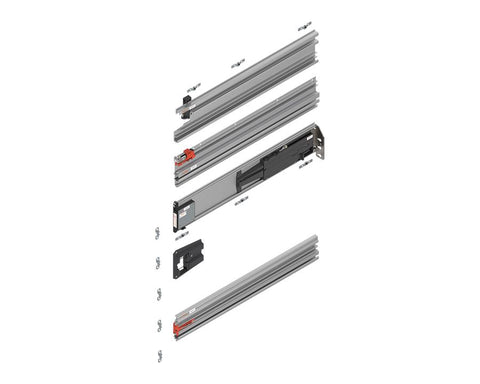

Blum REVEGO duo Pocket Profile Set with TIP-ON
$729.65
The Blum REVEGO duo Pocket Profile Set with TIP-ON is a high-performance solution designed for seamless integration into modern cabinetry. This essential component allows for the sophisticated concealment of door fronts, providing a clean and minimalist aesthetic while maintaining the effortless functionality of the REVEGO system.
Type: Pocket Profile
Application: for REVEGO duo
Material: aluminium
Fixing method: for system screws
Item package: set
Essential Components & Accessories:
Blum System Screw, Counter Sunk Head 6 x 14.5mm (6611450HG) must be used for installation and can be purchased separately. For optimal stability, the Door straightener (CBR04DS) is recommended to be used in conjunction with every REVEGO pocket system.
Technical Specifications & Performance:
Note:
The internal dimensions in the application (width x height x depth) determine the maximum space to be planned for the internal construction. Design the widest front first for combined applications. This system features a certified durability of 40,000 opening and closing cycles. The manual operating force is less than 70 N according to official durability testing. Detailed drilling patterns, cut-to-size dimensions, and parts lists are available via the Blum Product Configurator.
Assembly & Installation:
Precision machining is required for assembly. You will need a CNC machine or MINIPRESS top with EASYSTICK from Blum to machine the wooden parts. Please note that both horizontal drillings and a track cut-out are necessary for a successful installation. Blum recommends using the specialized drilling template for REVEGO pocket connectors to ensure accuracy for all horizontal drillings.
Application: for REVEGO duo
Material: aluminium
Fixing method: for system screws
Item package: set
Essential Components & Accessories:
Blum System Screw, Counter Sunk Head 6 x 14.5mm (6611450HG) must be used for installation and can be purchased separately. For optimal stability, the Door straightener (CBR04DS) is recommended to be used in conjunction with every REVEGO pocket system.
Technical Specifications & Performance:
Note:
The internal dimensions in the application (width x height x depth) determine the maximum space to be planned for the internal construction. Design the widest front first for combined applications. This system features a certified durability of 40,000 opening and closing cycles. The manual operating force is less than 70 N according to official durability testing. Detailed drilling patterns, cut-to-size dimensions, and parts lists are available via the Blum Product Configurator.
Assembly & Installation:
Precision machining is required for assembly. You will need a CNC machine or MINIPRESS top with EASYSTICK from Blum to machine the wooden parts. Please note that both horizontal drillings and a track cut-out are necessary for a successful installation. Blum recommends using the specialized drilling template for REVEGO pocket connectors to ensure accuracy for all horizontal drillings.
