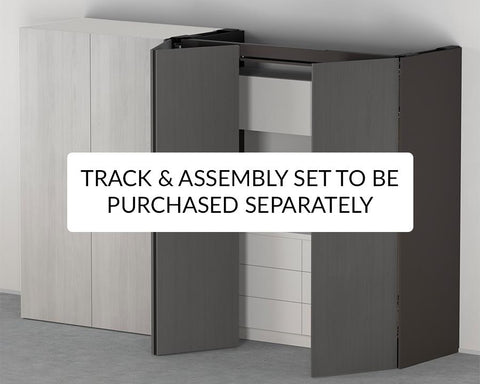

Blum REVEGO duo + uno Double and Single Door Application with Plinth for Pocket

The Blum REVEGO duo + uno pocket system offers a sophisticated solution for concealing kitchen work zones or living spaces with a seamless blend of single and double door applications. Designed specifically for installations with a plinth and pocket side thicknesses of 18–19mm, this system allows for a clean, flush appearance when closed and complete access when tucked away.

To ensure a complete installation, please note that track sets and assembly sets for combined single and double door applications must be purchased separately. This modular approach allows you to tailor the system to your specific cabinet depth and height requirements.

Technical Specifications and Compliance

• Certified Durability: Tested for 40,000 opening and closing cycles to ensure long-term reliability.
• Operating Force: Engineered for ease of use, maintaining a manual operating force of less than 70 N according to durability standards.
• Space Planning: The internal dimensions (width x height x depth) of your application determine the maximum space available for internal construction.
• Design Tip: For combined applications, it is recommended to design the widest front first.

Assembly and Installation Requirements

Precision is key for the REVEGO system. Professional installation requires a CNC machine or a Blum MINIPRESS top with EASYSTICK to properly machine the wooden components. Both horizontal drillings and a track cut-out are necessary for a secure fit. For optimal results, Blum recommends using the specialized drilling template for pocket connectors during horizontal drilling.

Essential Accessories (Sold Separately)

• Fasteners: Blum System Screws (Counter Sunk Head 6 x 14.5mm, 6611450HG) must be used.
• Stabilization: Door straighteners (CBR04DS or Cinetto models) are highly recommended for every REVEGO uno and duo pocket system to maintain perfect alignment over time.

Detailed drilling patterns, cut-to-size dimensions, and comprehensive parts lists can be found using the Blum Product Configurator.
