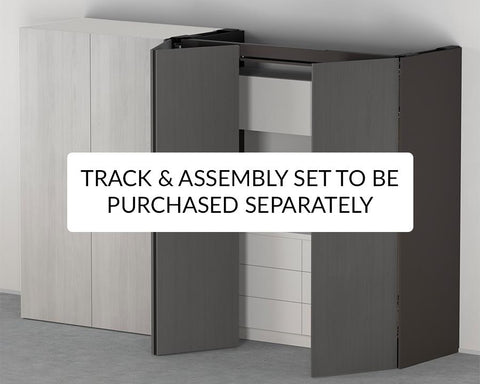

Blum REVEGO duo + uno Double and Single Door Application with Plinth for Pocket Side

The Blum REVEGO duo + uno system offers a sophisticated solution for combining single and double door applications, allowing you to seamlessly conceal entire functional areas when not in use. This pocket system is designed for high-end cabinetry where aesthetics and space optimization are paramount, providing a flush-fronted look that integrates perfectly into any modern living space.

Key Features and Technical Specifications

• Optimized Performance: Certified durability of 40,000 opening and closing cycles ensures long-term reliability.
• User Comfort: Features a manual operating force of less than 70 N according to rigorous durability testing.
• Precision Engineering: Designed for pocket side thicknesses of 15 - 17mm with various configuration options to suit your specific cabinet height and depth requirements.
• Versatile Application: Suitable for both right and left-handed configurations with integrated plinth support.

Installation and Assembly Requirements

To ensure a professional finish and optimal functionality, please note the following assembly requirements:

• Machining: A CNC machine or Blum MINIPRESS top with EASYSTICK is required for machining wooden parts, including horizontal drillings and track cut-outs.
• Required Components: Track sets and assembly sets for combined single and double door applications must be purchased separately.
• Hardware: Blum System Screws (6 x 14.5mm) are essential for installation and can be purchased separately.
• Recommended Accessories: We highly recommend using door straighteners in conjunction with every REVEGO pocket system to maintain perfect door alignment.

Planning Note

The internal dimensions (width x height x depth) determine the maximum space available for internal construction. For combined applications, it is recommended to design the widest front first. Detailed drilling patterns, cut-to-size dimensions, and comprehensive parts lists are available via the Blum Product Configurator.
