Blum REVEGO uno + duo Single and Double Door Application with Plinth for Pocket
The Blum REVEGO uno + duo system offers a sophisticated solution for both single and double door pocket applications, allowing you to conceal entire functional areas when not in use. This versatile pocket system is designed for seamless integration into various cabinetry layouts, providing a clean and minimalist aesthetic for modern living spaces.

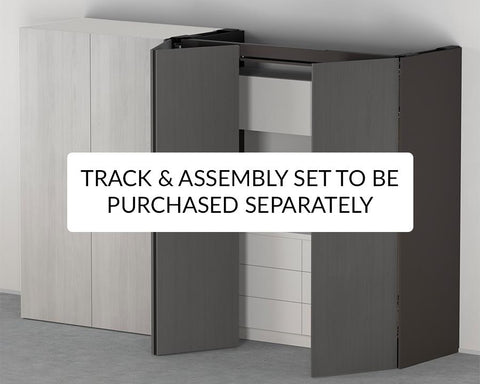

For a complete installation, please note that track sets and assembly sets for combined single and double door applications must be purchased separately. To ensure optimal performance and stability, we recommend using the Blum System Screw (6 x 14.5mm) and a door straightener, such as the CBR04DS or Cinetto models, which are available separately.
Technical Specifications and Compliance
- Certified Durability: Tested for 40,000 opening and closing cycles to ensure long-term reliability.
- Operating Force: The manual operating force is less than 70 N, meeting rigorous durability test standards.
- Design Planning: The internal dimensions (width x height x depth) of your application determine the maximum space for internal construction. For combined applications, it is recommended to design the widest front first.
Assembly and Installation
Precision is key for the REVEGO system. To machine the wooden parts correctly, a CNC machine or Blum MINIPRESS top with EASYSTICK is required. Please be aware that both horizontal drillings and a track cut-out are necessary for installation. Blum recommends utilizing the specific drilling template for REVEGO pocket connectors to ensure accurate horizontal drillings.
Detailed drilling patterns, cut-to-size dimensions, and comprehensive parts lists can be generated through the Blum Product Configurator to assist with your project planning.
