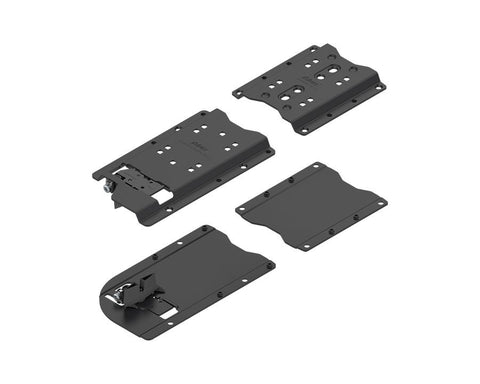

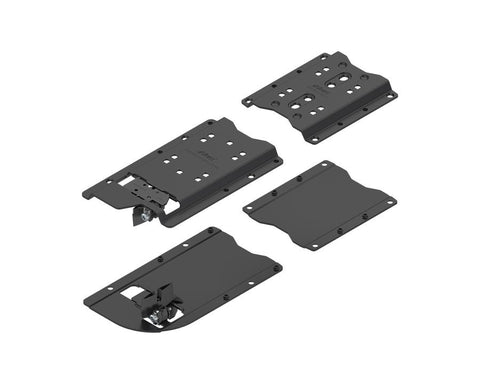

Blum REVEGO uno Pocket Connector Set for Application with Plinth. For Pocket Side Thickness:
Optimize your cabinetry with the Blum REVEGO uno Pocket Connector Set, specifically designed for seamless integration in applications featuring a plinth. This high-quality steel connector set provides the structural integrity and precision required for sophisticated pocket door systems, allowing for a clean, modern aesthetic in any kitchen or living space.
Engineered for durability and ease of use, this system ensures a smooth user experience. It has been tested to a certified durability of 40,000 opening and closing cycles, with a manual operating force of less than 70 N, ensuring long-lasting performance and effortless movement.
- Type: Pocket Connector
- Version: With Plinth
- Pocket Side Thickness: 15 - 19mm
- Material: Steel
- Fixing method: Screw-on
Required Accessories & Planning:
To ensure a successful installation, the Blum System Screw (Counter Sunk Head 6 x 14.5mm, 6611450HG) must be used and can be purchased separately. Additionally, the Door Straightener (CBR04DS) is recommended for use with every REVEGO uno & duo pocket system to maintain optimal door alignment. When planning your layout, please note that the internal dimensions (width x height x depth) determine the maximum space for the internal construction. For combined applications, it is recommended to design the widest front first.
Assembly and Machining:
The installation of this set requires precise machining of wooden components. You will need a CNC machine or a Blum MINIPRESS top with EASYSTICK to accommodate the necessary horizontal drillings and track cut-outs. For best results, Blum recommends utilizing the specialized drilling template for REVEGO pocket connectors to ensure accuracy during horizontal drilling.
Detailed drilling patterns, cut-to-size dimensions, and comprehensive parts lists are available via the Blum Product Configurator to assist with your project planning.
