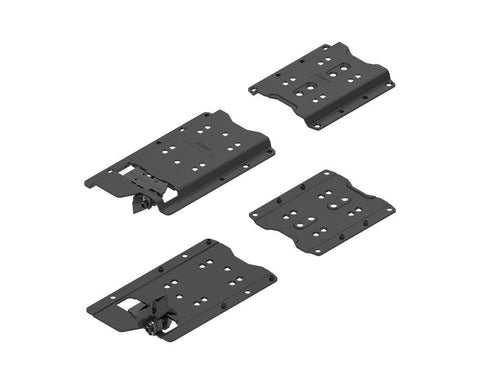

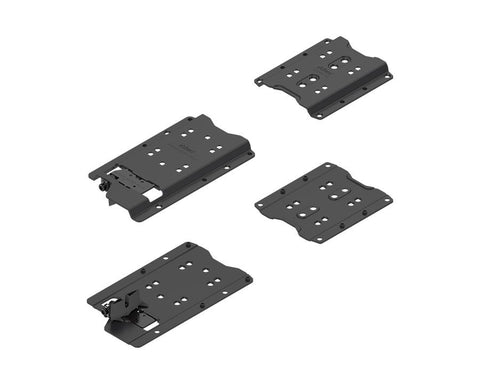

Blum REVEGO uno Pocket Connector Set For Application Without Plinth. For Pocket Side Thickness
The Blum REVEGO uno Pocket Connector Set is an essential component for achieving seamless, high-quality pocket door installations. Specifically designed for applications without a plinth, this connector set ensures a clean, integrated look for modern cabinetry and furniture designs. Built from robust steel with a durable finish, it provides the structural integrity needed for sophisticated pocket systems.
Technical Specifications:
- Type: Pocket Connector
- Version: Without Plinth
- Pocket Side Thickness: 15 - 19 mm
- Material: Steel
- Fixing Method: Screw-on
Key Performance & Safety Features:
- Certified durability of 40,000 opening and closing cycles for long-term reliability.
- Manual operating force is less than 70 N according to rigorous durability testing.
- The internal dimensions (width x height x depth) determine the maximum space available for internal construction; it is recommended to design the widest front first for combined applications.
Required & Recommended Accessories:
- Blum System Screw, Counter Sunk Head 6 x 14.5mm (6611450HG) must be used and is available for separate purchase.
- The Door Straightener (CBR04DS) is highly recommended for use with every REVEGO uno & duo pocket system to maintain optimal door alignment.
Assembly and Installation:
Installation requires precision machining of wooden parts. Users will need a CNC machine or a Blum MINIPRESS top with EASYSTICK. Both horizontal drillings and a track cut-out are necessary for successful integration. For maximum accuracy during horizontal drillings, Blum recommends utilizing the specific drilling template for REVEGO pocket connectors. Detailed drilling patterns, cut-to-size dimensions, and comprehensive parts lists can be generated via the Blum Product Configurator.
