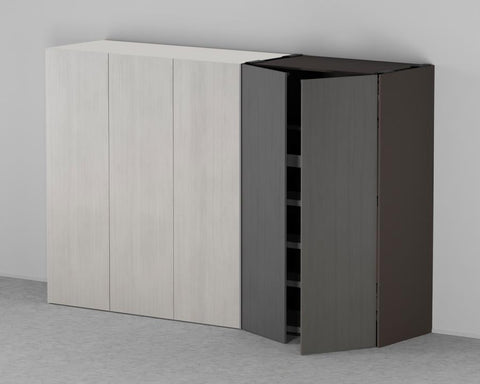

Blum REVEGO uno + uno Pocket Profile, Right & Left
$5,748.98
The Blum REVEGO uno + uno Pocket Profile system offers a sophisticated solution for creating functional, hidden storage areas within modern cabinetry. This comprehensive kit provides the essential hardware required to implement a seamless pocket door application, allowing doors to disappear into the cabinet body for an unobstructed workflow and a clean, minimalist aesthetic.
Each kit is thoughtfully assembled to include:
• REVEGO uno Pocket Profile Sets (Left & Right)
• REVEGO uno Hinge Bracket Sets with TIP-ON (Left & Right)
• REVEGO uno Pocket Connector Sets for applications without plinth (Left & Right) This system is designed for pocket side thicknesses ranging from 15mm to 19mm. To ensure optimal performance and stability, the use of Blum System Screws (6611450HG) is required, and a door straightener (CBR04DS) is highly recommended for every REVEGO uno and duo installation. Technical Specifications and Certifications:
• Durability: Certified for 40,000 opening and closing cycles.
• Operation: Manual operating force is less than 70 N according to durability tests.
• Planning: Internal application dimensions (width x height x depth) determine the maximum space for internal construction. For combined applications, it is advised to design the widest front first.
• Resources: Detailed drilling patterns, cut-to-size dimensions, and parts lists are available via the Blum Product Configurator. Assembly Requirements:
Professional installation is required to ensure precision. Machining of wooden parts necessitates the use of a CNC machine or a Blum MINIPRESS top with EASYSTICK. Both horizontal drillings and a track cut-out are essential for installation. For horizontal drillings, Blum recommends utilizing the specific drilling template for REVEGO pocket connectors.
