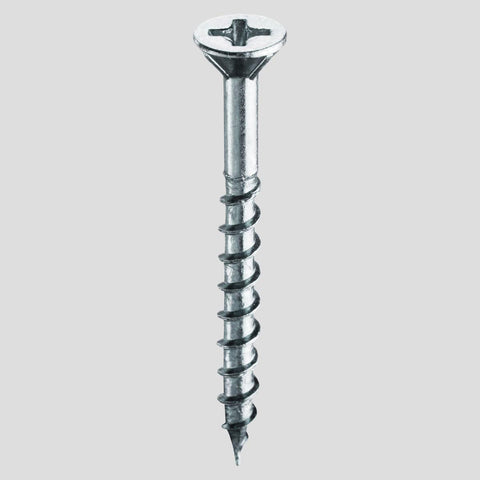

Chipboard Screws | Partial Thread, Phillips Head
A precision-engineered partial thread chipboard screw designed for high-clamping panel assembly in cabinetry and joinery applications.
Manufactured from carbon steel with a corrosion-resistant surface treatment, these screws deliver consistent pull-out resistance across chipboard, MDF, and solid timber substrates. The partial thread engages only the receiving material, creating a tight draw between clamped components without thread interference — a critical distinction for flat-pack and modular cabinet assembly. The Phillips (PH2) drive profile allows controlled torque with standard power tools, reducing cam-out risk during high-volume production runs. Available in G8 (Ø4.2mm), G9 (Ø4.5mm), and G10 (Ø4.8mm) gauges across lengths from 28mm to 100mm.
Product Details
- Material: Carbon steel with corrosion-resistant surface treatment
- Thread type: Partial thread for superior panel-to-panel clamping force
- Drive: Phillips PH2, compatible with standard power drivers
- Point: Sharp self-tapping for clean entry into chipboard and MDF without pre-drilling
- Gauges: G8 (Ø4.2mm), G9 (Ø4.5mm), G10 (Ø4.8mm)
- Lengths: 28mm to 100mm; supplied in bulk boxes of 250–1000 units depending on size
Best For
Flat-pack and site-assembled cabinetry where panel-to-panel clamping integrity is non-negotiable — particularly 16–18mm melamine-faced chipboard and moisture-resistant MDF used in kitchen and bathroom joinery. G8 gauge suits standard carcass assembly; G10 is the preferred choice for structural connections in heavier frameless cabinet systems. Well-suited to production environments and trade joiners working at volume.
