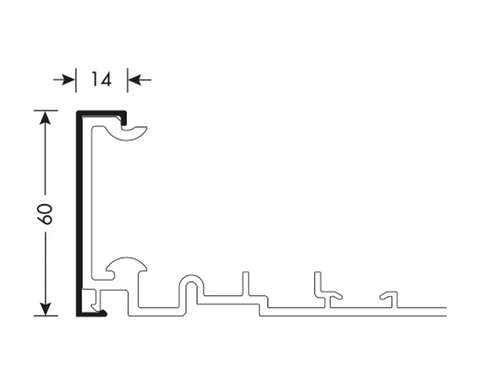

Cinetto PIANO (PS40) Coplanar Door System Cover Profile for Upper Rail
$151.97
Cinetto is an esteemed Italian company founded by Roberto Cinetto in 1948. What began as a small hardware shop soon became the premier destination for local carpenters' supplies. Since then, Cinetto has established itself as a global leader in the design and production of sliding systems for furniture and aluminium profiles for furnishings. Their history of manufacturing quality products allows them to develop hardware that not only looks great but functions effortlessly.
The Cinetto PIANO Coplanar System offers 100% flexibility for modern cabinetry. Thanks to a mechanism that incorporates all movements, the track can be cut to size according to specific project requirements. This system allows you to create versatile combinations with 1, 2, or 3 doors and provides the ability to modify the gap between the doors and the floor (17, 25, or 35 mm) by simply moving a single component of the lower slide.
Features:
● Aligned wardrobe panels providing a completely flush look when closed
● Soft opening and soft closing functionality
● Suitable for wooden doors and aluminium framed doors
● Compatible with B-moved power systems
● Handle Profiles available
● B Moved only available in 1 or 2 door applications
Specifications:
● Max Height: 3000mm
● Track Lengths: Available in multiple lengths to suit project needs
● Width of each door (2 doors): min 890mm, max 1800 mm
● Width of each door (3 doors): min 1300 mm, max 1800 mm (Check track length availability for max door widths)
● Door thickness: min 16 mm, max 43 mm (55mm including handles)
● Number of doors: up to 3 doors
● Adjustment of the door height: ±6mm
● Weight Capacity (2 Door Systems): Max 60 kg
● Weight Capacity (3 Door Systems): Max 45kg for outer doors, 100kg for middle doors
View the Cinetto PS40 Troubleshooting FAQs
The Cinetto PIANO Coplanar System offers 100% flexibility for modern cabinetry. Thanks to a mechanism that incorporates all movements, the track can be cut to size according to specific project requirements. This system allows you to create versatile combinations with 1, 2, or 3 doors and provides the ability to modify the gap between the doors and the floor (17, 25, or 35 mm) by simply moving a single component of the lower slide.
Features:
● Aligned wardrobe panels providing a completely flush look when closed
● Soft opening and soft closing functionality
● Suitable for wooden doors and aluminium framed doors
● Compatible with B-moved power systems
● Handle Profiles available
● B Moved only available in 1 or 2 door applications
Specifications:
● Max Height: 3000mm
● Track Lengths: Available in multiple lengths to suit project needs
● Width of each door (2 doors): min 890mm, max 1800 mm
● Width of each door (3 doors): min 1300 mm, max 1800 mm (Check track length availability for max door widths)
● Door thickness: min 16 mm, max 43 mm (55mm including handles)
● Number of doors: up to 3 doors
● Adjustment of the door height: ±6mm
● Weight Capacity (2 Door Systems): Max 60 kg
● Weight Capacity (3 Door Systems): Max 45kg for outer doors, 100kg for middle doors
View the Cinetto PS40 Troubleshooting FAQs
