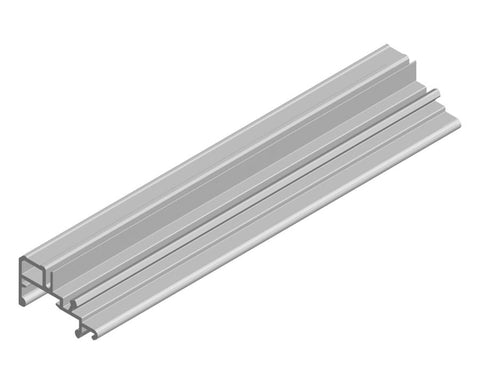

Cinetto PIANO (PS40) Coplanar Door System Lower Rail
$223.19
Cinetto is an Italian company founded by Roberto Cinetto in 1948. What began as a small hardware shop soon became the go-to place for local carpenters' supplies. Since then, Cinetto has established itself as a leading company in the design and production of sliding systems for furniture and aluminium profiles for furnishings.
The Cinetto PIANO Coplanar System offers total flexibility for modern cabinetry. Thanks to a mechanism that incorporates all movements, the track can be cut to size according to specific project requirements. This versatile system allows you to create seamless combinations with 1, 2, or 3 doors. The PIANO System also allows users to modify the gap between the doors and the floor (17, 25, or 35 mm) by simply moving a single component of the lower slide.
Recognised as a world leader in sliding systems, Cinetto combines Italian design heritage with effortless functionality to ensure your wardrobe or cabinet looks great and operates smoothly.
Features:
● Aligned wardrobe panels providing a completely flush look when closed
● Soft opening and soft closing functionality
● Suitable for wooden doors and aluminium framed doors
● Compatible with B-moved automated systems
● Handle profiles available for a custom finish
● B-moved functionality available in 1 or 2 door applications
Specifications:
● Width: 48.5mm
● Height: 27.5mm
● Width of each door (2 doors): min 890mm, max 1800mm
● Width of each door (3 doors): min 1300mm, max 1800mm (Verify track length for maximum door widths)
● Doors thickness: min 16mm, max 43mm (55mm including handles)
● Numbers of doors: up to 3 doors
● Adjustment of the door height: ±6mm
● Weight Capacity: 2 Door Systems: Max 60kg
● Weight Capacity: 3 Door Systems: Max 45kg for outer doors, 100kg for middle doors
View the Cinetto PS40 Troubleshooting FAQs
The Cinetto PIANO Coplanar System offers total flexibility for modern cabinetry. Thanks to a mechanism that incorporates all movements, the track can be cut to size according to specific project requirements. This versatile system allows you to create seamless combinations with 1, 2, or 3 doors. The PIANO System also allows users to modify the gap between the doors and the floor (17, 25, or 35 mm) by simply moving a single component of the lower slide.
Recognised as a world leader in sliding systems, Cinetto combines Italian design heritage with effortless functionality to ensure your wardrobe or cabinet looks great and operates smoothly.
Features:
● Aligned wardrobe panels providing a completely flush look when closed
● Soft opening and soft closing functionality
● Suitable for wooden doors and aluminium framed doors
● Compatible with B-moved automated systems
● Handle profiles available for a custom finish
● B-moved functionality available in 1 or 2 door applications
Specifications:
● Width: 48.5mm
● Height: 27.5mm
● Width of each door (2 doors): min 890mm, max 1800mm
● Width of each door (3 doors): min 1300mm, max 1800mm (Verify track length for maximum door widths)
● Doors thickness: min 16mm, max 43mm (55mm including handles)
● Numbers of doors: up to 3 doors
● Adjustment of the door height: ±6mm
● Weight Capacity: 2 Door Systems: Max 60kg
● Weight Capacity: 3 Door Systems: Max 45kg for outer doors, 100kg for middle doors
View the Cinetto PS40 Troubleshooting FAQs
