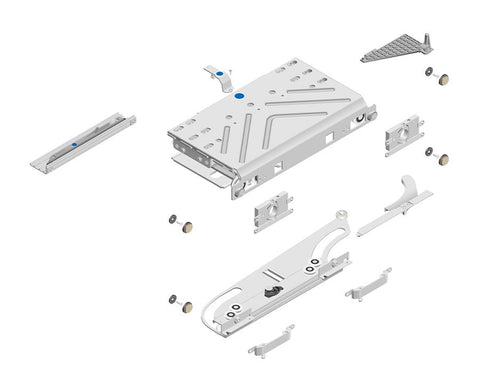

Cinetto PIANO (PS40) Coplanar Door System Slides Kit
$1,377.32
Cinetto is an Italian company founded by Roberto Cinetto in 1948. What began as a small hardware shop soon became the go-to place for local carpenters' supplies. Since then, Cinetto has established itself as a leading company in the design and production of sliding systems for furniture and aluminium profiles for furnishings. Their history of manufacturing quality products allows them to develop hardware that not only looks great but functions effortlessly.
The Cinetto PIANO Coplanar System offers 100% flexibility for modern cabinetry. Thanks to a mechanism that incorporates all movements, the track can be cut to size according to specific project requirements. This system allows you to create seamless combinations with 1, 2, or 3 doors, providing a completely flush look when closed. For added versatility, the PIANO System allows users to modify the gap between the doors and the floor (17mm, 25mm, or 35mm) by simply moving a single component of the lower slide.
Features:
Specifications:
View the Cinetto PS40 Troubleshooting FAQs
The Cinetto PIANO Coplanar System offers 100% flexibility for modern cabinetry. Thanks to a mechanism that incorporates all movements, the track can be cut to size according to specific project requirements. This system allows you to create seamless combinations with 1, 2, or 3 doors, providing a completely flush look when closed. For added versatility, the PIANO System allows users to modify the gap between the doors and the floor (17mm, 25mm, or 35mm) by simply moving a single component of the lower slide.
Features:
- Aligned wardrobe panels providing a completely flush, high-end look
- Integrated soft opening and soft closing mechanisms
- Suitable for both wooden doors and aluminium framed doors
- Compatible with B-moved technology
- Handle profiles available
- B-moved functionality available for 1 or 2 door applications
Specifications:
- Length: 3050mm
- Width: 45mm
- Width of each door (2 doors): min 890mm, max 1800mm
- Width of each door (3 doors): min 1300mm, max 1800mm (Check track length availability for max door widths)
- Doors thickness: min 16mm, max 43mm (55mm including handles)
- Number of doors: up to 3 doors
- Adjustment of the door height: ±6mm
- Weight Capacity (2 Door Systems): Max 60kg
- Weight Capacity (3 Door Systems): Max 45kg for outer doors, 100kg for middle doors
View the Cinetto PS40 Troubleshooting FAQs
