Cinetto PIANO (PS40) Coplanar System for 1 Door Systems,

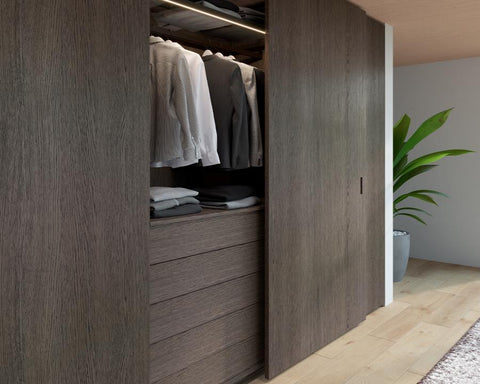

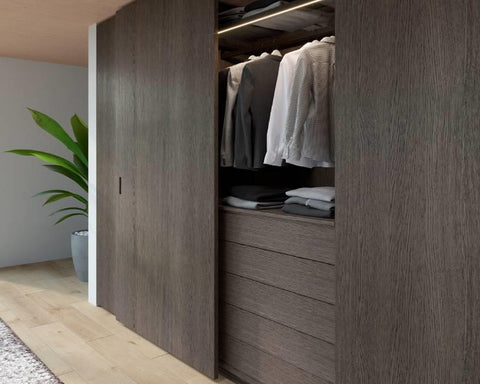

The Cinetto PIANO Coplanar System offers ultimate flexibility for modern cabinetry. Designed with a mechanism that incorporates all necessary movements, the track can be cut to size to meet specific project requirements. This high-end system allows for the creation of various configurations with 1, 2, or 3 doors, providing a sleek, flush look where wardrobe panels align perfectly when closed.
Engineered for versatility, the PIANO System allows users to modify the gap between the doors and the floor (17mm, 25mm, or 35mm) by simply adjusting a single component on the lower slide. For optimal performance and door stability, it is recommended to use Cinetto door straighteners in conjunction with this system.
Features:
- Aligned panels providing a completely flush aesthetic
- Integrated soft opening and soft closing functionality
- Suitable for both wooden doors and aluminium framed doors
- Supports configurations of up to 3 doors
- Compatible with B-moved automated systems (available for 1 or 2 door applications)
- Handle profiles available for a finished look
Specifications:
- Max Door Height: 3000mm
- Door Thickness: min 16mm, max 43mm
- Door Height Adjustment: ±6mm
- Weight Capacity (2 Door Systems): Max 60kg
- Weight Capacity (3 Door Systems): Max 45kg for outer doors, 100kg for middle doors
- Width of each door (2 doors): min 890mm, max 1800mm
- Width of each door (3 doors): min 1300mm, max 1800mm
