Cinetto PIANO (PS40) Coplanar System for 2 Door Systems
$4,101.94

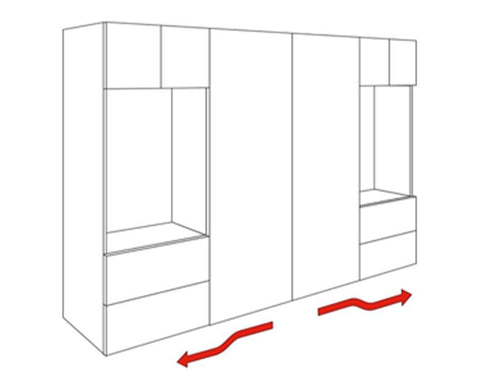

The Cinetto PIANO Coplanar System offers ultimate flexibility for modern cabinetry. Designed with a mechanism that incorporates all necessary movements, the track can be easily cut to size to meet specific project requirements. This versatile system allows for various configurations, including 1, 2, or 3 door setups, providing a sophisticated solution for high-end wardrobes and storage units.
A standout feature of the PIANO System is its adjustability; users can modify the gap between the doors and the floor (17, 25, or 35 mm) by simply adjusting a single component on the lower slide. For optimal performance and longevity, it is recommended to use Cinetto Door straighteners in conjunction with this system.
Features:

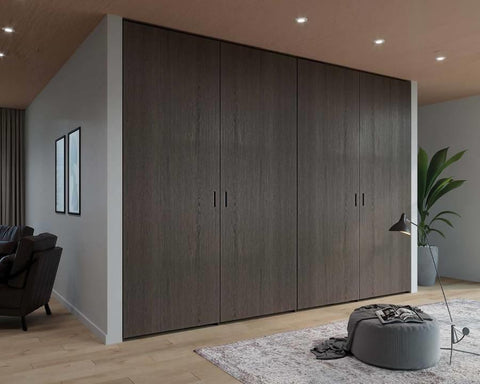

• Aligned wardrobe panels providing a completely flush look when closed
• Integrated soft opening and soft closing functionality
• Suitable for both wooden doors and aluminium framed doors
• Supports configurations of up to 3 doors
• Compatible with B-moved automation
• Handle profiles available for a seamless finish
Specifications:
• Track Length Options: Available in 2m and 4m lengths
• Maximum Door Height: 3000mm
• Door Width (2-door systems): Min 890mm / Max 1800mm
• Door Width (3-door systems): Min 1300mm / Max 1800mm
• Door Thickness: Min 16mm / Max 43mm
• Door Height Adjustment: ±6mm
• Weight Capacity (2-door systems): Max 60kg per door
• Weight Capacity (3-door systems): Max 45kg for outer doors, 100kg for middle doors
• Note: B-moved compatibility is restricted to 1 or 2 door applications
A standout feature of the PIANO System is its adjustability; users can modify the gap between the doors and the floor (17, 25, or 35 mm) by simply adjusting a single component on the lower slide. For optimal performance and longevity, it is recommended to use Cinetto Door straighteners in conjunction with this system.
Features:
• Aligned wardrobe panels providing a completely flush look when closed
• Integrated soft opening and soft closing functionality
• Suitable for both wooden doors and aluminium framed doors
• Supports configurations of up to 3 doors
• Compatible with B-moved automation
• Handle profiles available for a seamless finish
Specifications:
• Track Length Options: Available in 2m and 4m lengths
• Maximum Door Height: 3000mm
• Door Width (2-door systems): Min 890mm / Max 1800mm
• Door Width (3-door systems): Min 1300mm / Max 1800mm
• Door Thickness: Min 16mm / Max 43mm
• Door Height Adjustment: ±6mm
• Weight Capacity (2-door systems): Max 60kg per door
• Weight Capacity (3-door systems): Max 45kg for outer doors, 100kg for middle doors
• Note: B-moved compatibility is restricted to 1 or 2 door applications
