Cross Mounting Plate With Oblong Hole Height Adjustment, Nickel Plated, Hole Line 37 x 32 mm, With Euro Screws (For Drilling ø 5 x 12 mm), Distance 8.0 mm

$3.60
  • Cross mounting plate with oblong hole height adjustment
  • For Sensys, Novisys and Intermat
  • Quality classification under EN 15570, Level 3

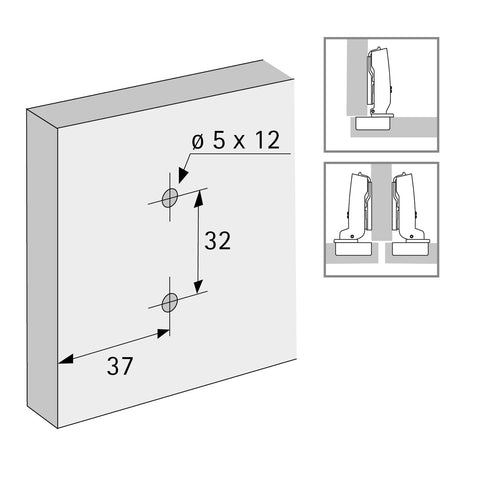

  • For Hole line 37 x 32 mm
  • Installation with euro screws (for drilling ø 5 x 12 mm)
  • Distance 8.0 mm
  • Adjustment range + 3 mm / - 3 mm
  • steel nickel plated
  • 9075059
    Technical details
    Cabinet body side panel thickness 15 mm
    Type of installation mounting plates with euro screws (ø 5 x 12)
    Mounting plate / Hole line distance LR / Hole spacing LA Cross mounting plate / LR 37 / LA 32
    Type of mounting plate Cross mounting plate
    Hole line distance LR 37 mm
    Height adjustment oblong hole height adjustment
    Adjustment range + 3 mm / - 3 mm
    Hole line Hole line 37 x 32 mm
    Distance 8 mm
    Hole spacing 32 mm
    Material steel
    Finish nickel plated

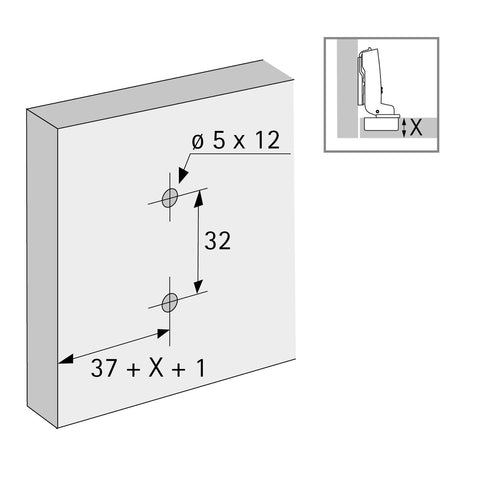

    Door mounting option overlay
    half overlay
    inset
    Type of installation with euro screws
    Mounting hole ø 5 x 12
    EAN 4023149171024
    Order no. 9075059
    PU 50 ea.

Price
$3.60
