DTC 110° AWSO HINGE, FULL OVERLAY,

Elevate your cabinetry with the DTC 110° AWSO hinge system, engineered for precision, durability, and seamless functionality. Designed specifically for full overlay applications, these hinges provide a wide opening angle ranging from 45° to 110°, ensuring maximum accessibility and ease of use for modern kitchen and furniture designs.

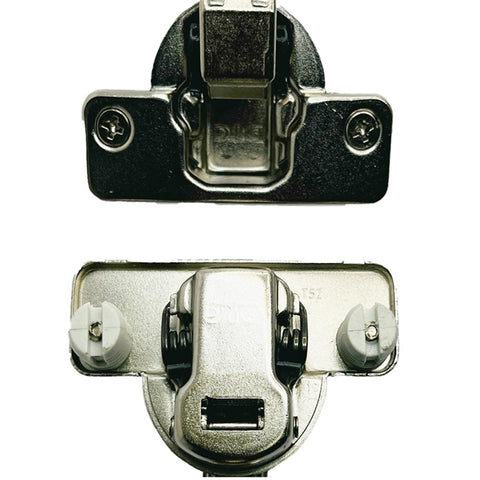

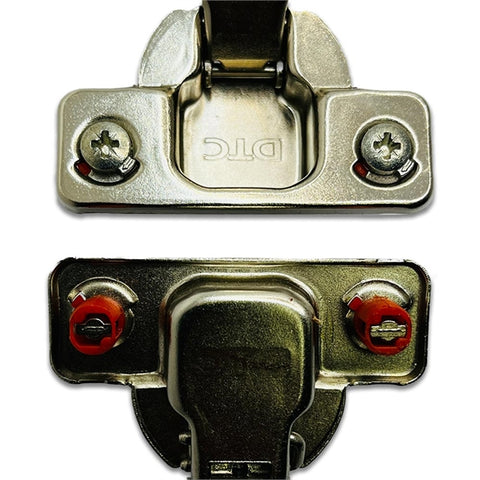

This versatile hardware solution offers multiple installation and closing options to suit your project requirements. Whether you prefer the efficiency of a knock-in setup or the convenience of a quick-turn mounting system, these hinges deliver a secure fit. Choose between standard operation or integrated soft-close technology to ensure a silent, smooth, and controlled closing action every time.

As part of a curated collection, these hinges are built to high industry standards, offering a reliable performance that professional installers and homeowners trust.

Technical Specifications:

• Opening Angle: 45° to 110°
• Door Overlay: Full Overlay

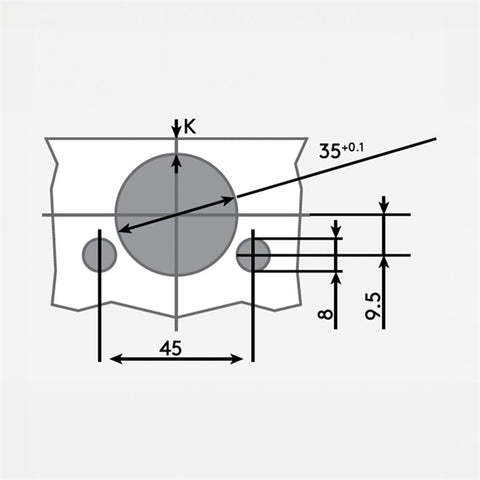

• Drilling Pattern: 45 / 9.5 / 8
• Installation: 8mm Dowel
• Compatibility: Use with AWSO plates
• Finish: Nickel Plated
• Range: DTC
• Type: Hinges
