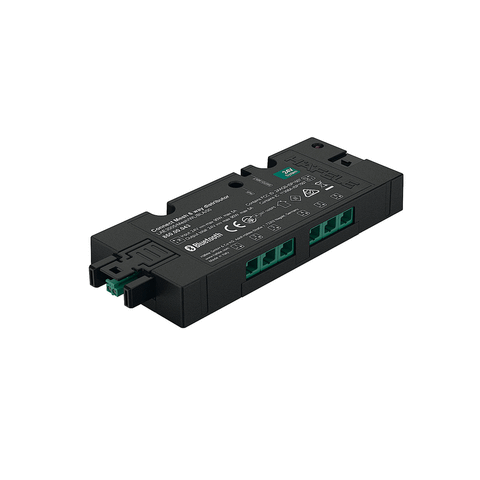

Häfele Connect Mesh 6-Way Distributor 24V 2-Pin

Smart control meets precision performance — seamlessly manage and personalise your lighting with Häfele Connect Mesh technology.

The Häfele Connect Mesh 6-Way Distributor redefines intelligent lighting control, bringing sophistication and convenience to any modern interior. Designed with advanced Bluetooth connectivity and a programmable switching function, this compact yet powerful hub allows you to control up to six lighting outputs independently — including monochrome, multi-white, and RGB lights.

Crafted for flexibility, the distributor integrates effortlessly into Häfele’s Loox5 24V lighting system, enabling dimming (0–100%) and switching with precision through the intuitive Connect Mesh app for Apple iOS and Android. Its plug-and-play functionality and wireless control make it an ideal choice for both residential and commercial applications, offering unmatched adaptability in ambience and light quality.

Features

Programmable Bluetooth 6-way distributor with 24V Loox5 2-pin system
Each output port can be controlled individually via the Connect Mesh app
Compatible with monochrome, multi-white, and RGB lights
Switch on/off and dim (0–100%) with smart app-based control
Compact and durable design with adhesive and screw mounting options
Functions as a signal amplifier within the Connect Mesh network for extended range
Designed for enclosed, dry environments (IP20 rated)

Specifications

Material: Plastic
Finish: Black
Voltage: 24V DC
Power Rating: 120W (UL 90W)
Standby Power Consumption: 0.5W
Dimensions (L x W x H): 120 x 50 x 16 mm
Input Ports: 1 x Loox5 2-pin 24V (box-to-box plug)
Output Ports: 6 x Loox5 2-pin 24V sockets
Control Input Ports: 1 x Loox switch socket
Switching Function: Programmable via Connect Mesh app
Maximum Network Distance: 5 m (line of sight)
Operating Environment: Indoor, dry locations only (IP20)
Max Lead Length (Driver to Distributor): 2 m
Certifications: Bluetooth®, RCM (Australia), UKCA, JATE/TELEC MIC (Japan)

Supplied With:
1 x 6-Way Distributor
Fixing Material (adhesive tape and screws)

Downloads

Installation Instructions
Operating Instructions

Order Reference:
Adapters are required for multi-white lights, RGB lights, or motorised fittings — order separately.

Experience intuitive, wireless lighting control that adapts to your mood, your schedule, and your space — all through Häfele’s Connect Mesh system.
