Häfele Maxi Up

Designed for performance, built for elegance — Maxi Up brings quiet control to the heart of your cabinetry.

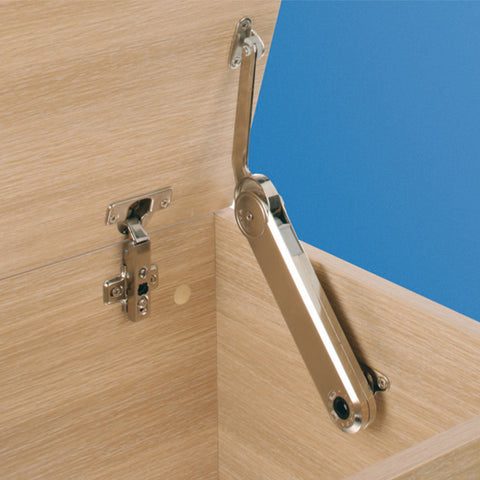

The Häfele Maxi Up Flap Fitting redefines upward-opening cabinetry with an elegant fusion of strength and control. Crafted from a premium combination of zinc alloy and steel, this fitting ensures smooth, stable flap movement for heavier lids, offering effortless function paired with architectural precision. With an opening angle of approximately 75º and a robust internal mechanism, Maxi Up is engineered to elevate the experience of opening a cabinet door into something truly satisfying — quiet, seamless, and built to last.

Available in two adjustable models (G and H) to accommodate a wide range of flap sizes and weights, this stay is compatible with both single and dual fitting configurations for added flexibility. The clip-on system allows for tool-free installation onto pre-mounted brackets, simplifying the process without compromising on strength. With the option to include a soft-closing mechanism, Maxi Up adds a layer of refinement for those seeking the ultimate in controlled, graceful movement. Finishes in nickel plating with distinctive colour-coded adjustment screws ensure both function and aesthetic coherence across your space.

Features

Designed for flaps with upward-opening action

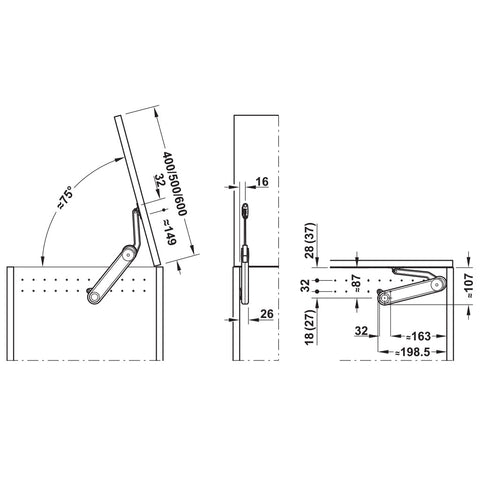

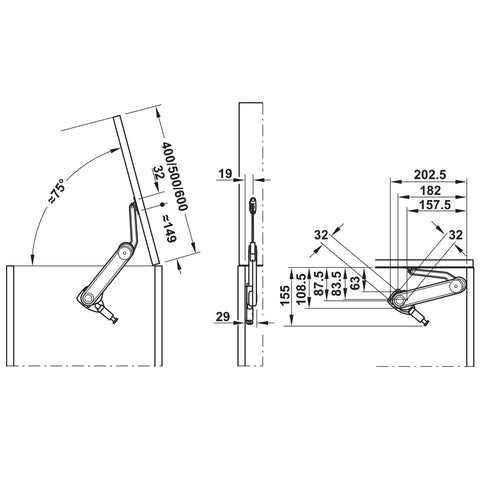

Opening angle approx. 75º for easy access and ergonomic use
Durable stay made of zinc alloy; brackets and screw-on components in steel
Clip-on installation for quick, tool-free assembly
Available in two models:
Model G (Brown adjustment screw): for lighter lids
Model H (Black adjustment screw): for heavier lids
Can be installed with one or two lid stays depending on weight and depth
Optional soft-closing mechanism for gentle closure
Nickel-plated finish with grey safety cap

Specifications

Material:
Stay: Zinc alloy
Mounting brackets and screw-on brackets: Steel
Safety cap: Plastic (Grey)
Finish: Nickel plated
Adjustment Screw Colour: Brown (Model G), Black (Model H)
Installation: Tool-free clip system onto pre-mounted mounting bracket

Lid Weight Guidelines:

Single Lid Stay Configuration:
400 mm depth: G = 3.0–5.3 kg | H = 5.2–9.4 kg
500 mm depth: G = 2.5–4.2 kg | H = 4.3–7.5 kg
600 mm depth: G = 2.3–4.2 kg | H = 4.0–6.7 kg
Dual Lid Stay Configuration:
400 mm depth: G = 6.6–10.6 kg | H = 10.4–18.8 kg
500 mm depth: G = 5.0–8.4 kg | H = 8.6–15.0 kg
600 mm depth: G = 4.6–8.4 kg | H = 8.0–13.4 kg

Note:
Mounting brackets (e.g. 373.69.906) and screw-on brackets (e.g. 373.66.681) are not included and must be ordered separately.

Downloads

Maxi Up Installation Instructions
Installation Instructions
