Hettich

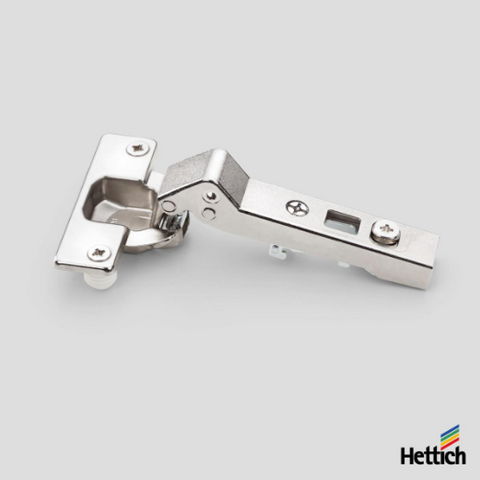

Intermat Hinge — 45° Pantry Door | Press-In Base 6mm
$9.45
A precision-engineered 45° pantry door hinge designed for overlay cabinet applications where angled geometry and reliable motion are non-negotiable.
Hinge plate required. This hinge needs a compatible mounting plate to be installed. Plates are sold separately — please add the correct plate to your order.
Constructed to Hettich's Intermat specification, this hinge features a press-in cup fixing for tool-free installation and runs on a 6mm mounting plate for consistent door alignment. The 45° opening angle suits pantry and corner cabinet configurations where standard hinges fall short. Finished to Hettich's standard grey, it integrates cleanly into functional cabinetry without visual intrusion.
Product Details
- Material: Steel with polymer components
- Finish: Standard grey
- Opening angle: 45°
- Cup fixing: Press-in with expanding dowels
- Suits mounting plate height: 6mm
- Cup diameter: 35mm (standard Intermat)
- SKU: 145.526 / Hettich ref. 77700
Best For
Suited to pantry cabinets, corner units, and tall door applications requiring a restricted opening angle. The press-in base reduces installation time on production runs or site-built cabinetry. Specify where door swing must be controlled by geometry rather than a separate limiter.
