Krome Soft Close Shallow Cup Ss304 Hinge 45mm K/In

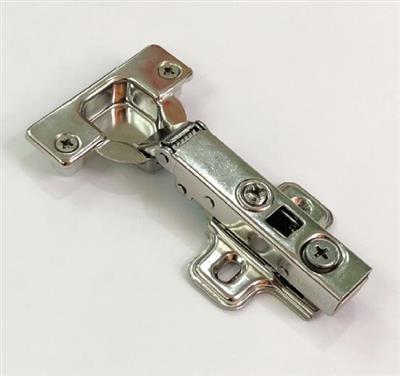

KROME SHALLOW CUP STAINLESS STEEL HINGE

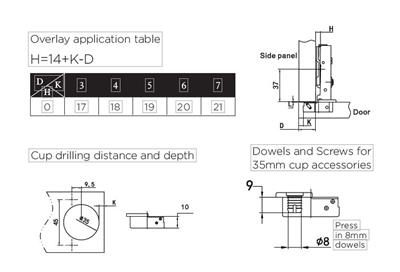

• 35mm Diameter hole with a 10mm shallow cup depth
• Clip-on, full overlay with cam adjustment on hinge arm
• 304 grade Stainless Steel hinge & mounting plate
• 45mm drilling centres + Knock in 8mm dowel
• Includes 15.5mm 304 grade Stainless Steel mounting plate screws
• Download Technical Specifications PDF

DESCRIPTION CODE - KROME SHALLOW CUP STAINLESS STEEL HINGE 450027

Note - The following components are not 304 grade Stainless Steel

• Springs, dampener, link, door gap adjustment screw, clip-on trigger, U pivot and all single pivots.
