Salice 200 Series Std 110º Hinges

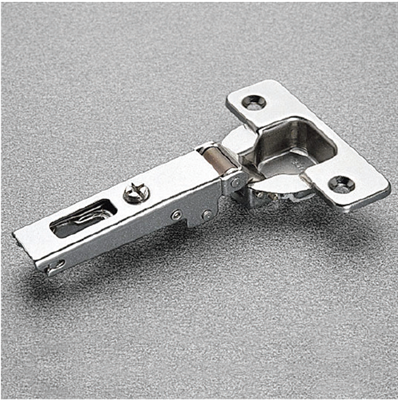

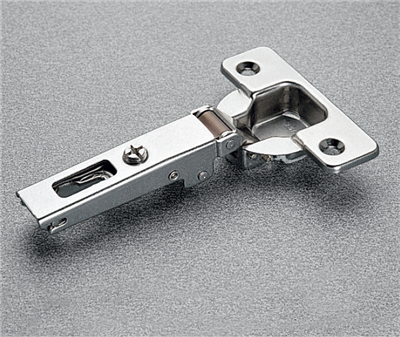

SALICE SERIES 200 110º FULL OVERLAY HINGES
The Salice Series 200 represents a versatile range of high-quality cabinet hinges designed to meet diverse functional requirements. Available in various fixing and tension options, these hinges provide a reliable solution for full overlay door applications where a standard 110° opening angle is required.

TECHNICAL FEATURES
Engineered for precision and durability, these hinges feature a robust 11mm deep metal cup. They offer flexible installation with a drilling distance (K) on the door ranging from 3mm to 6mm and are fully compatible with all DOMI snap-on mounting plates for a secure, efficient fit.

FUNCTIONAL VARIATIONS
Depending on your project needs, this series offers different mechanical actions:

• Reverse-Sprung: Designed for push-to-open applications, these hinges are self-opening once the release device is activated. They must be used with a suitable push-to-open device and retaining catch.
• Un-Sprung: These hinges are free-swinging and not equipped with a closing system. When paired with a Salice push-to-open device and magnetic retaining catch, they provide a seamless handle-less aesthetic.
• Standard Screw-Fix: A dependable non-soft close option for traditional installations requiring a wide opening angle.

SPECIFICATIONS

• 11mm deep metal cup
• 110° opening angle

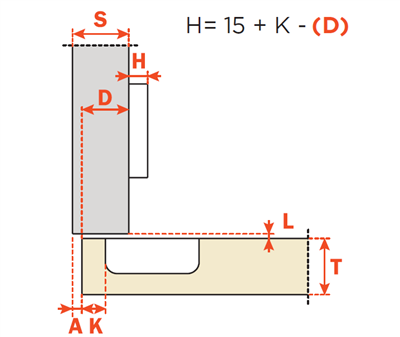

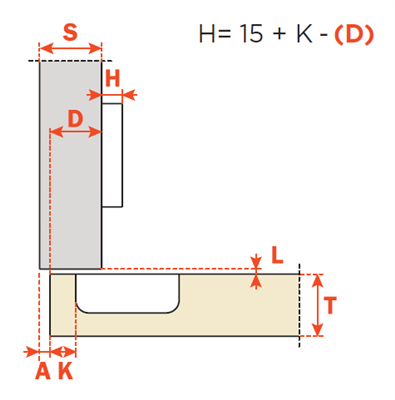

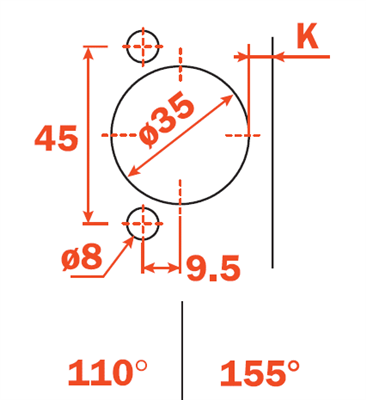

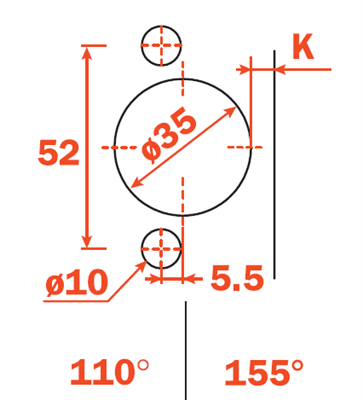

• Possible drilling distance on the door (K): from 3 to 6mm
• Compatible with all DOMI snap-on mounting plates
• Available in Rapido or Screw-Fix versions
• Made in Italy
• Box quantity: 300

Hinge Angle	110°
Application	Full Overlay
Origin	Italy
