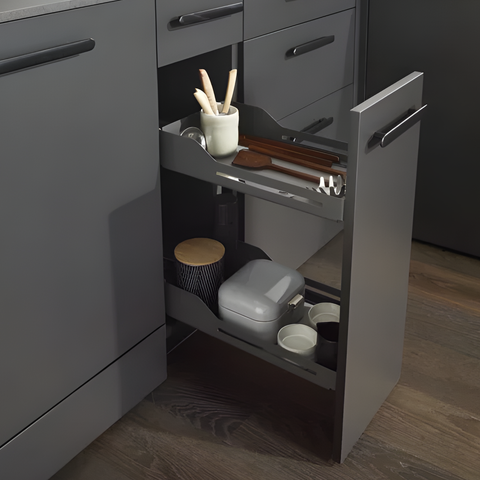

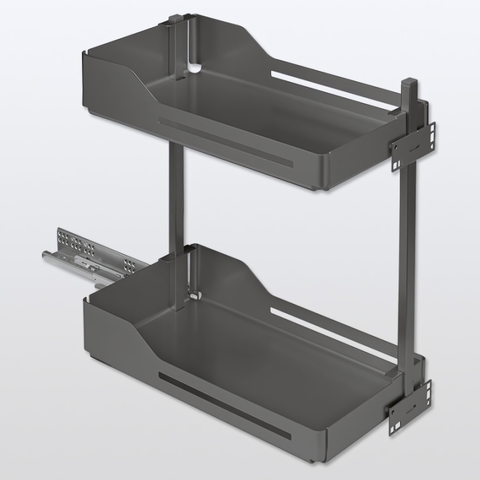

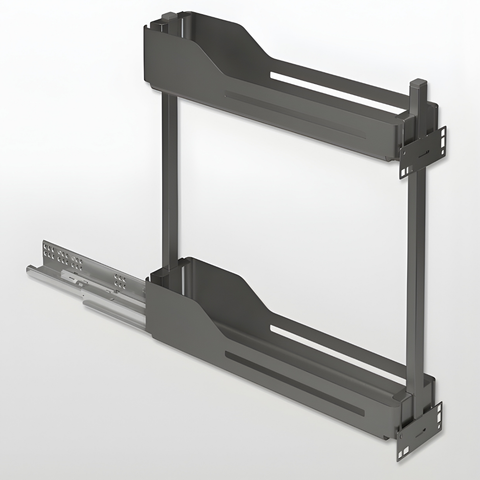

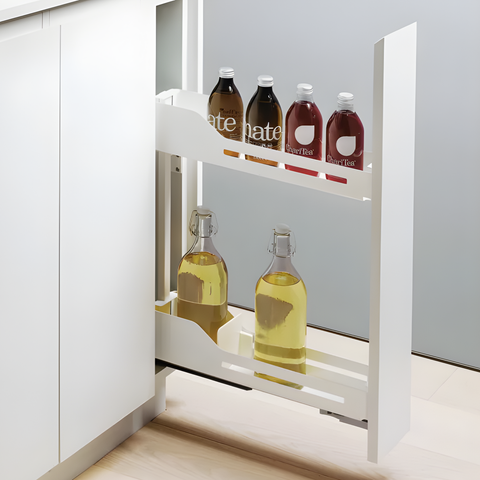

Snello Libell Base Unit Pull-Out
A full-extension base unit pull-out engineered for complete accessibility in narrow cabinet configurations.
The Peka Snello Libell system is built around a thin-walled Libell shelf design that reclaims internal volume typically lost to conventional wire baskets. Integrated soft-close and soft-open mechanisms on both upper and lower slides deliver controlled, silent movement — a hallmark of German-engineered cabinet hardware. The system is compatible with push-to-open configurations, making it well-suited to handleless kitchen designs where hardware continuity matters.
Materials & Finish
- Steel frame construction with powder-coated finish for corrosion resistance
- Clip-on Libell shelves with thin-wall profile to maximise usable storage depth
- Soft-close mechanism integrated on upper and lower slides (model dependent)
- Soft-open technology on upper slide for effortless, controlled extension

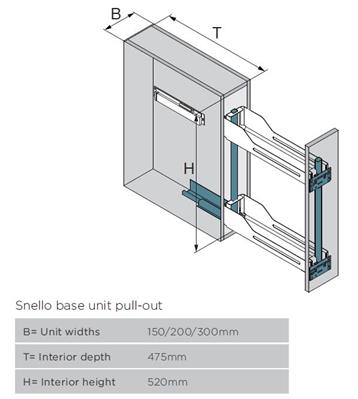

- Load capacity: 15kg (150mm) to 20kg (300mm)
What Works Well With It
The Snello Libell suits base cabinets in contemporary and transitional kitchens where clean lines and functional density are priorities. It performs particularly well in handleless layouts with J-pull or integrated grip profiles, and pairs naturally with matt lacquer or veneer door finishes where the hardware is concealed within the cabinet carcass.
